Product Description

 close-icon minus-icon

Level Up is the ultimate solution for your outdoor raised floor. It is very quick to install and guarantees a stable and safe surface.

Delivery conditions:

Level Up is a product to be supplied in sets for covering a minimum of 5.4 m2 and multiples.

The codes that make up the basic set are:

  • TER09-1125
  • POZ95-1313
  • TER09-1124


TER09-1124: Kit consisting of 38pcs of adjustable feet for Level Up and 33 noise-reducing rubber levellers (TER09-1131). The packaging allows the installation of 5.4m2 of Level Up.

The kit, without the use of extensions, features an adjustment of the Level Up system from a minimum of 48 to a maximum of 74mm.

It also provides for the use of the support in the middle of the Level-Up laying module.

Extensions and mat are optional accessories.

Materials used

 close-icon minus-icon

The Laying Module is made of high performance PEHD compound.
The Reinforcement Profile is made of galvanized steel.

Use

 close-icon minus-icon

LEVEL UP is Dakota's patented system that allows the creation of a load-bearing structure, adjustable in height thanks to its supports (minimum 48 mm), where multi-format tiles for outdoor use can be laid. The structure is made of a specific material and is reinforced by steel profiles. The upper level also guarantees high safety standards in case of breakage.

The adjusting spanner is a 15 mm socket spanner that is to be used in the opposite direction to its natural use. A 15-mm hexagon socket with an outer dimension of 20 mm, suitable for adjusting the height of the levelup


Articles

minus-icon
Product Code/Name Download Dimension Article Info

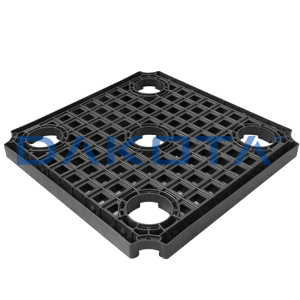

Laying Module Enlarge search-icon
TER09-1125

Laying Module

600 x 600 x h.38 mm

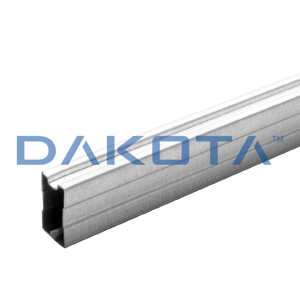

Reinforcement Profile Enlarge search-icon
POZ95-1313

Reinforcement Profile

34 x 482 x h.19 mm
Anti-noise rubber Leveler for 3 mm spacer joint Enlarge search-icon
TER09-1131

Anti-noise rubber Leveler for 3 mm spacer joint

sp.3 - ø 130

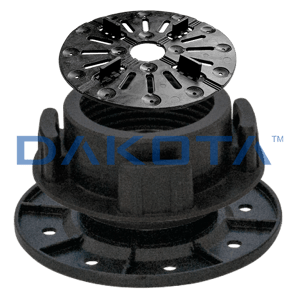

38 pcs. Adjustable Stand for Level-Up + 33 pcs. Rubber Noise Leveler (TER09-1131) Enlarge search-icon
TER09-1124

38 pcs. Adjustable Stand for Level-Up + 33 pcs. Rubber Noise Leveler (TER09-1131)

da 48 a 74 mm
Adjustment key for supports Enlarge search-icon
TER09-1283CHI

Adjustment key for supports

120 x 310 mm
