Hercules - Decking | Fixed Head


Request information
  • Certifications
  • Product sheet
  • Articles
  • Related products
  • Accessories
  • Similar products
  • Share on

Product sheet

Description

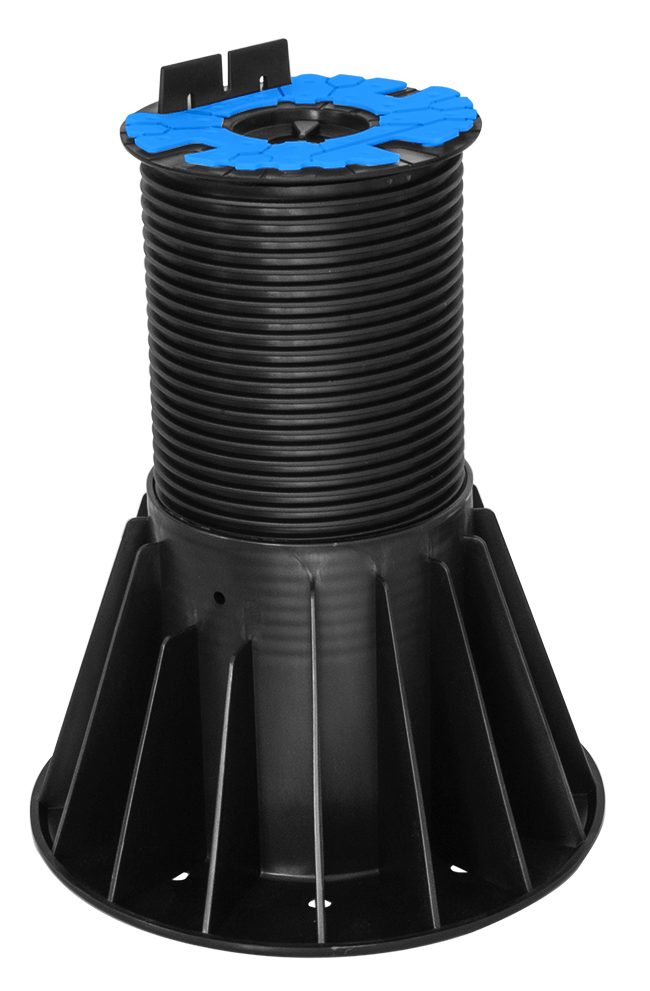

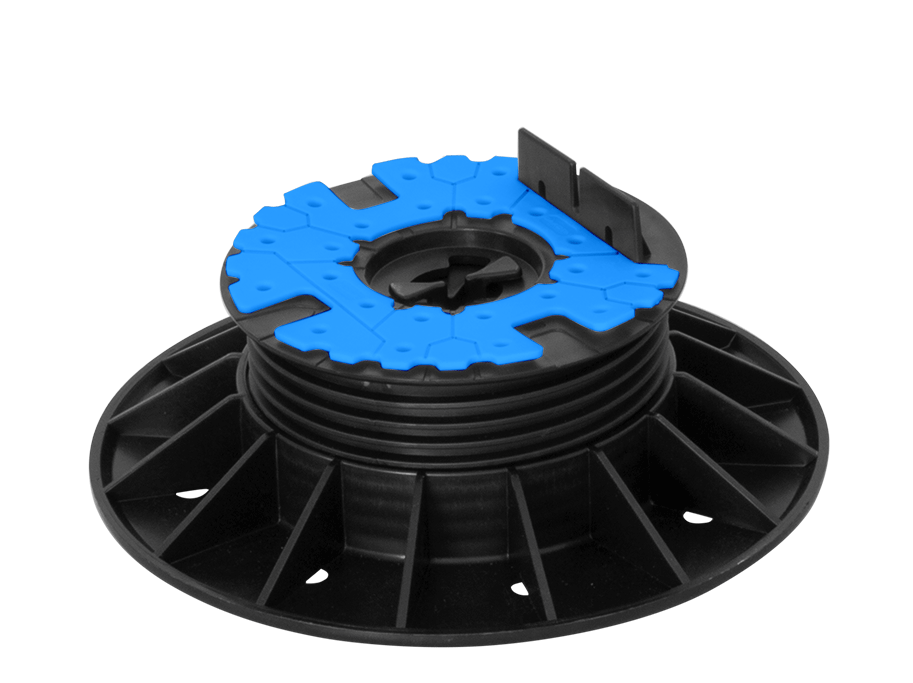

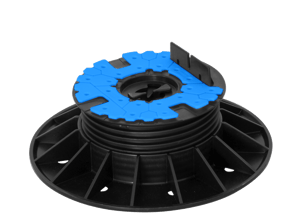

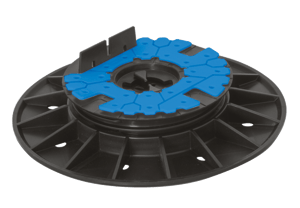

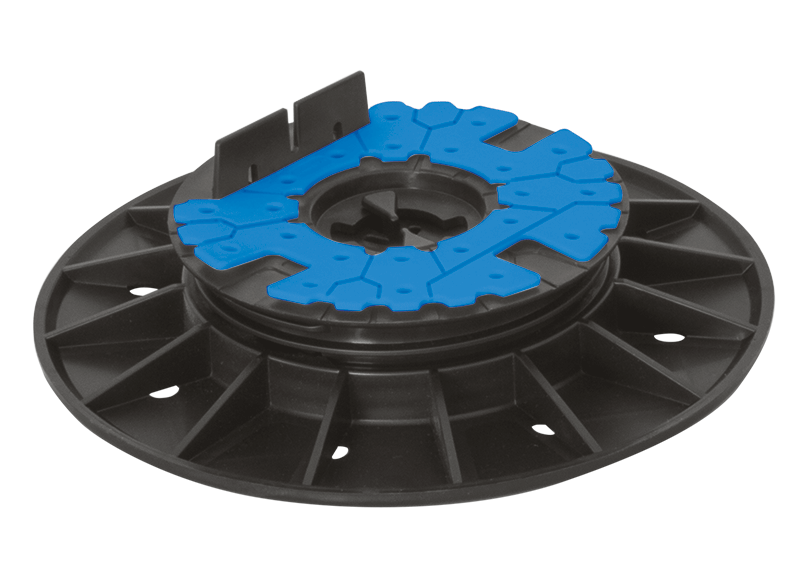

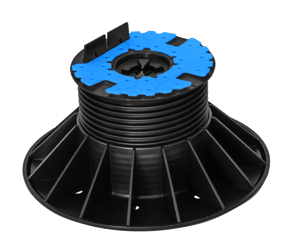

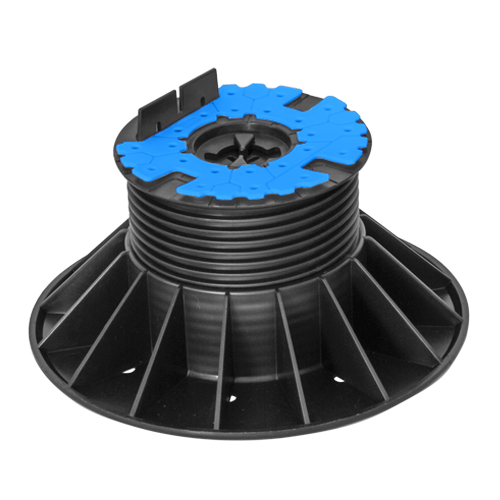

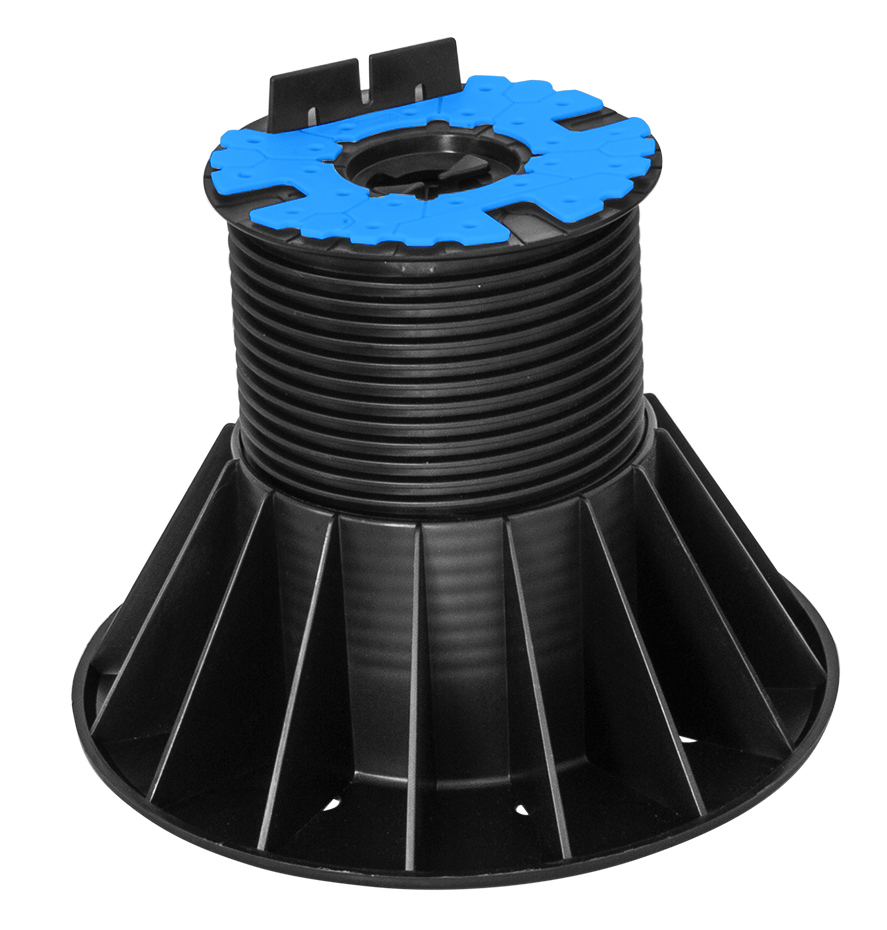

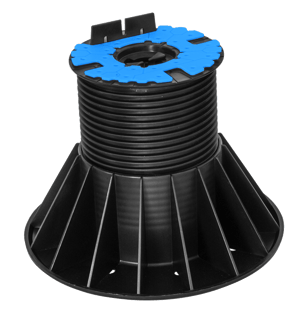

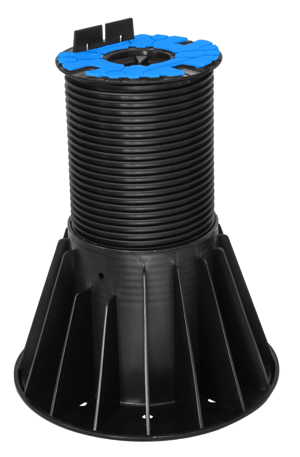

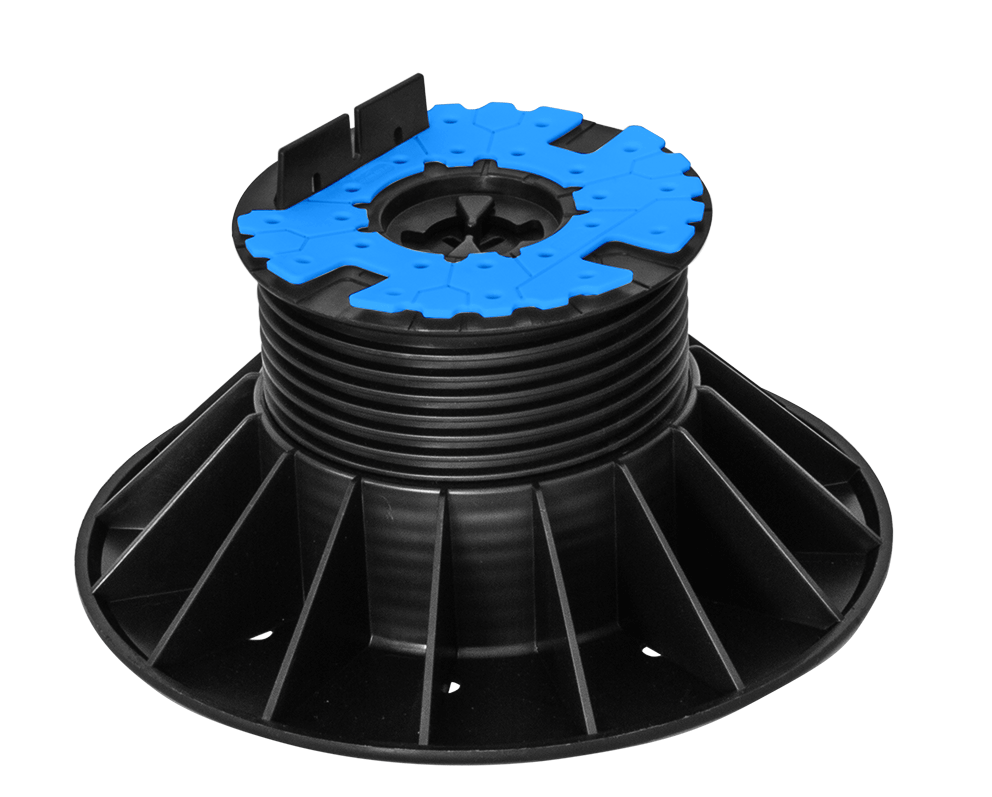

Hercules adjustable support for outdoor flooring, with adjustable height from min. 25 to max. 390 mm (depending on the model used).

Each pack contains the complete disassembled support with base, screw and fixed head for decking for fixing the joist.

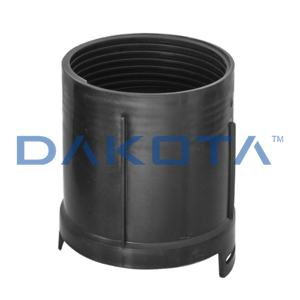

The head of the holder is equipped with integrated anti-noise rubber. Only the model from h. 150 to 270 mm can be extended by applying the specific extension h. 120 mm (TER09-1183 / P120).

The finalization of the adjustment of the support takes place with the floor installed using the appropriate key.

Material

Made of PP (polypropylene).

Use

Used in external areas, terraces, pavements.

Articles

Code
Commercial Description
Dimensions
Q.ty/pkg
Q.ty/pallet
Selling Unit

TER09-1183/1F25
TD
Hercules Decking - Fixed Head
25-37mm
30 PZ
720 PZ
PZ

TER09-1183/1F37
TD
Hercules Decking - Fixed Head
37-60mm
30 PZ
480 PZ
PZ

TER09-1183/1F60
TD
Hercules Decking - Fixed Head
94-150mm
25 PZ
300 PZ
PZ

TER09-1183/1F94
TD
Hercules Decking - Fixed Head
94-150mm
20 PZ
160 PZ
PZ

TER09-1183/1F150
TD
Hercules Decking - Fixed Head
150-270mm
15 PZ
120 PZ
PZ

TER09-1183CHI
TD
Adjustment key for Hercules
--
12 PZ
-
PZ
Legend:
TD
Technical Datasheet
Packaging available

Articles

Delete All
TER09-1183/1F25
Hercules Decking - Fixed Head
Dimensions: 25-37mm
Q.ty/pkg: 30 PZ
Q.ty/pallet: 720 PZ
Selling Unit: PZ
TD
More info
TER09-1183/1F37
Hercules Decking - Fixed Head
Dimensions: 37-60mm
Q.ty/pkg: 30 PZ
Q.ty/pallet: 480 PZ
Selling Unit: PZ
TD
More info
TER09-1183/1F60
Hercules Decking - Fixed Head
Dimensions: 94-150mm
Q.ty/pkg: 25 PZ
Q.ty/pallet: 300 PZ
Selling Unit: PZ
TD
More info
TER09-1183/1F94
Hercules Decking - Fixed Head
Dimensions: 94-150mm
Q.ty/pkg: 20 PZ
Q.ty/pallet: 160 PZ
Selling Unit: PZ
TD
More info
TER09-1183/1F150
Hercules Decking - Fixed Head
Dimensions: 150-270mm
Q.ty/pkg: 15 PZ
Q.ty/pallet: 120 PZ
Selling Unit: PZ
TD
More info
TER09-1183CHI
Adjustment key for Hercules
Dimensions: --
Q.ty/pkg: 12 PZ
Q.ty/pallet: - PZ
Selling Unit: PZ
TD
More info
Legend:
TD
Technical Datasheet
