Hercules decking self leveling head
Adjustable Decking Risers w Self-Levelling Head - Hercules?noresize
Adjustable Decking Risers w Self-Levelling Head - Hercules
Adjustable Decking Risers w Self-Levelling Head - Hercules
Adjustable Decking Risers w Self-Levelling Head - Hercules
Adjustable Decking Risers w Self-Levelling Head - Hercules
Adjustable Decking Risers w Self-Levelling Head - Hercules
Adjustable Decking Risers w Self-Levelling Head - Hercules

1 /

Product Description

 close-icon minus-icon

Hercules adjustable support for outdoor flooring, with an adjustable height from min. 25 to max. 390 mm (depending on the model used).

Each pack contains the complete disassembled support with base, screw and self-levelling head (up to 5% slopes) for decking and fixing the joists.

The head of the holder is equipped with an integrated anti-noise rubber shim. The model from h. 150 to 270 mm is the only one that can be extended by applying the specific h. 120 mm extension (TER09-1183 / P120).

The finalization of the adjustment of the support takes place with the floor installed using the appropriate key.

Materials used

 close-icon minus-icon

Made of PP (polypropylene).

Use

 close-icon minus-icon

Used in external areas, terraces, pavements.

Articles

minus-icon
Product Code/Name Download Dimension Article Info

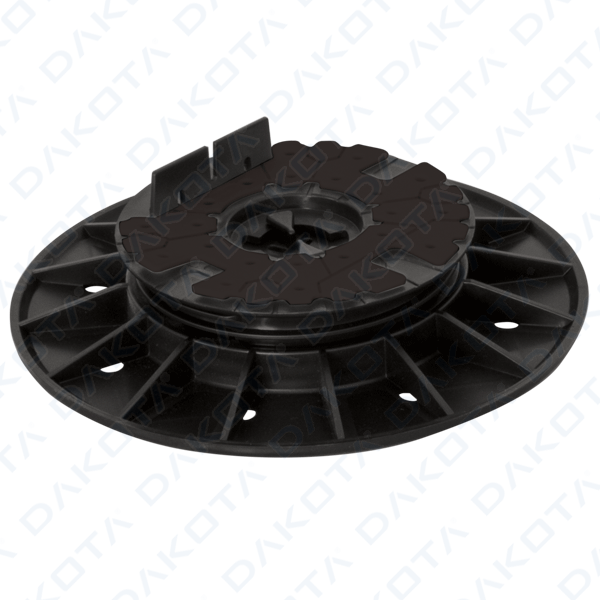

Hercules Decking - Self-Leveling Head Enlarge search-icon
TER09-1183/1L25

Hercules Decking - Self-Leveling Head

close-icon
TD 		25-37mm

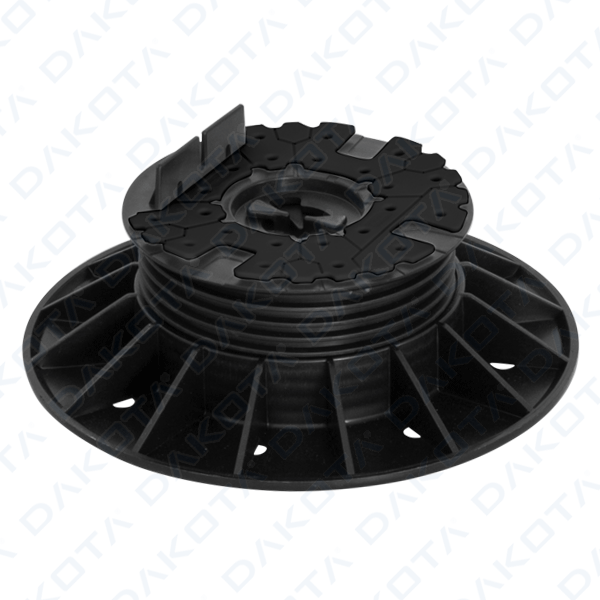

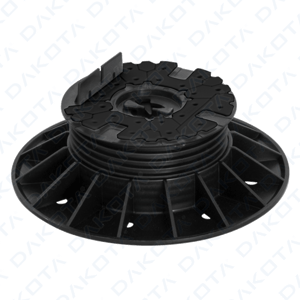

Hercules Decking - Self-Leveling Head Enlarge search-icon
TER09-1183/1L37

Hercules Decking - Self-Leveling Head

close-icon
TD 		37-60mm

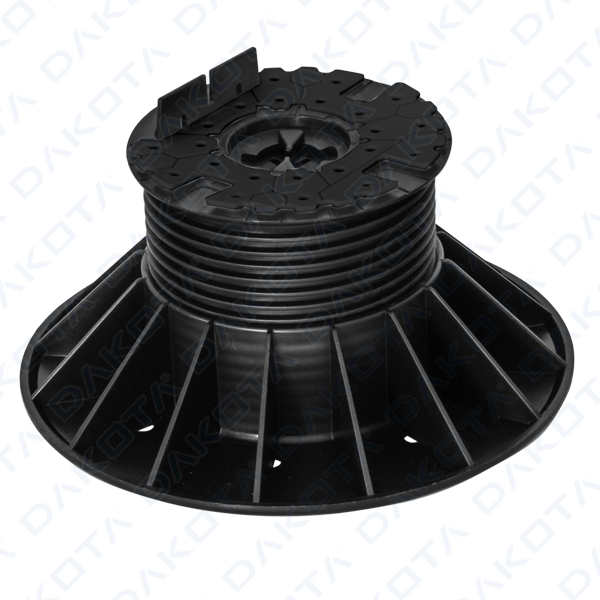

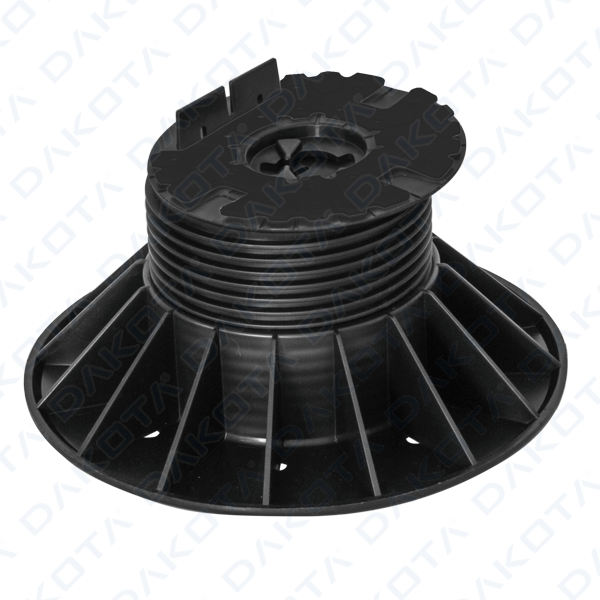

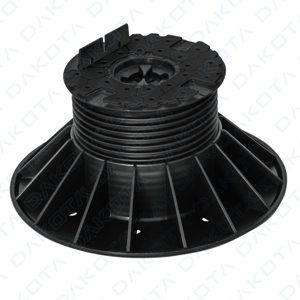

Hercules Decking - Self-Leveling Head Enlarge search-icon
TER09-1183/1L60

Hercules Decking - Self-Leveling Head

close-icon
TD 		60-94mm

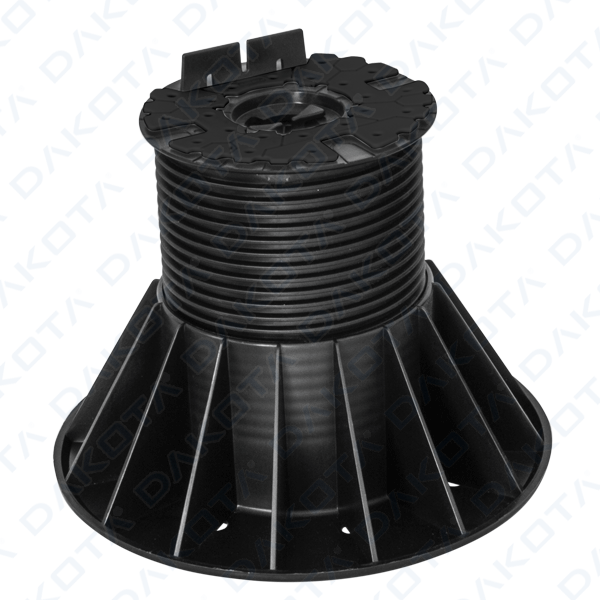

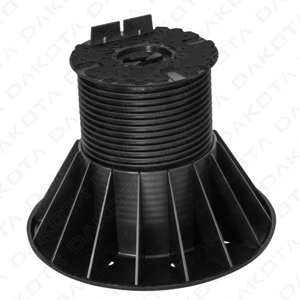

Hercules - Testa autolivellante per Decking (duplicato) Enlarge search-icon
TER09-1183/1L94

Hercules - Testa autolivellante per Decking (duplicato)

close-icon
TD 		94-150mm

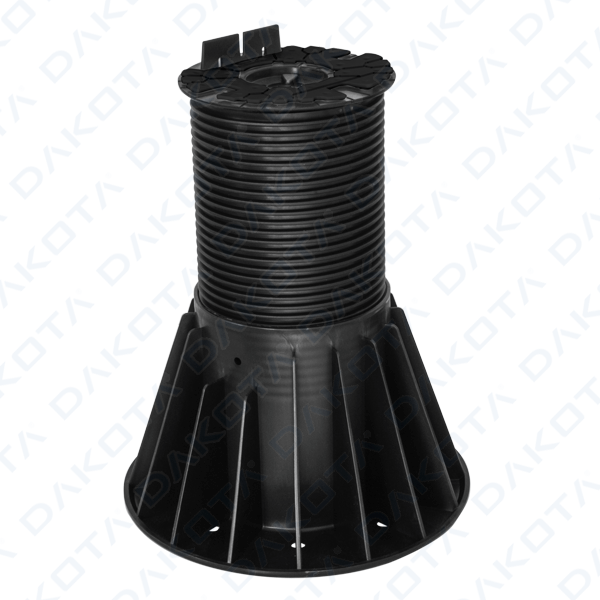

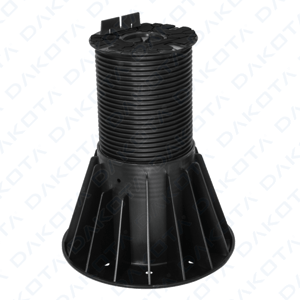

Hercules Decking - Self-Leveling Head Enlarge search-icon
TER09-1183/1L150

Hercules Decking - Self-Leveling Head

close-icon
TD 		150-270mm
Extension h.120 mm for Hercules 150-270 Enlarge search-icon
TER09-1183/P120

Extension h.120 mm for Hercules 150-270

close-icon
TD 		120 mm
Adjustment key for Hercules Enlarge search-icon
TER09-1183CHI

Adjustment key for Hercules

close-icon
TD 		--

Download Legends

TD

TD

Technical Datasheet
