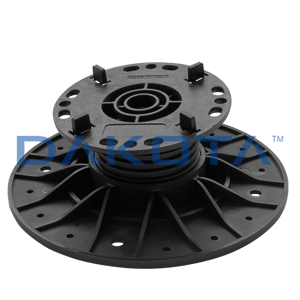

3D-TELESCOPIC Supports - SELF-LEVELING HEAD

Request information
  • Certifications
  • Product sheet
  • Articles
  • Related products
  • Accessories
  • Similar products
  • Share on

Product sheet

Description

3D-scopic tiles support with adjustable height from min. 35 to max. 500 mm according to the model. Each box includes a self-leveling head equipped with 4 wings of 10 mm, to be used for slats of 2 - 4 mm. Terminal leveling variable inclination from 0 to 5%. Adjustment of the support of 1,5 mm for each rotation of 90° (equal to 5 shots).

Material

Made of PP (polypropylene).

Use

Used in external areas, terraces, pavements.

Articles

Code
Commercial Description
Dimensions
Q.ty/pkg
Q.ty/pallet
Selling Unit

TER09-1123055N1
TD
Self-leveling 3D Scopic tile provided with 4 wings for 2 mm slats
da 35 a 55
1 CF
20 CF
CF

TER09-1123070N1
TD
Self-leveling 3D Scopic tile provided with 4 wings for 2 mm slats
da 55 a 70
1 CF
20 CF
CF

TER09-1123110N1
TD
Self-leveling 3D Scopic tile provided with 4 wings for 2 mm slats
da 70 a 110
1 CF
5 CF
CF

TER09-1123150N1
TD
Self-leveling 3D Scopic tile provided with 4 wings for 2 mm slats
da 110 a 150
1 CF
5 CF
CF

TER09-1123170N1
TD
Self-leveling 3D Scopic tile provided with 4 wings for 2 mm slats
da 150 a 170
1 CF
5 CF
CF

TER09-1123200N1
TD
Self-leveling 3D Scopic tile provided with 4 wings for 2 mm slats
da 170 a 200
1 CF
5 CF
CF

TER09-1123240N1
TD
Self-leveling 3D Scopic tile provided with 4 wings for 2 mm slats
da 205 a 240
1 CF
5 CF
CF

TER09-1123275N1
TD
Self-leveling 3D Scopic tile provided with 4 wings for 2 mm slats
da 240 a 275
1 CF
5 CF
CF

TER09-1123310N1
TD
Self-leveling 3D Scopic tile provided with 4 wings for 2 mm slats
da 275 a 310
1 CF
5 CF
CF

TER09-1123340N1
TD
Self-leveling 3D Scopic tile provided with 4 wings for 2 mm slats
da 310 a 340
1 CF
5 CF
CF

TER09-1123370N1
TD
Self-leveling 3D Scopic tile provided with 4 wings for 2 mm slats
da 340 a 370
1 CF
5 CF
CF

TER09-1123400N1
TD
Self-leveling 3D Scopic tile provided with 4 wings for 2 mm slats
da 370 a 400
1 CF
5 CF
CF

TER09-1123430N1
TD
Self-leveling 3D Scopic tile provided with 4 wings for 2 mm slats
da 400 a 430
1 CF
5 CF
CF

TER09-1123465N1
TD
Self-leveling 3D Scopic tile provided with 4 wings for 2 mm slats
da 430 a 465
1 CF
5 CF
CF

TER09-1123500N1
TD
Self-leveling 3D Scopic tile provided with 4 wings for 2 mm slats
da 465 a 500
1 CF
5 CF
CF

TER09-1123055N2
TD
Self-leveling 3D Scopic tile provided with 4 wings for 4 mm slats
da 35 a 55
1 CF
20 CF
CF

TER09-1123070N2
TD
Self-leveling 3D Scopic tile provided with 4 wings for 4 mm slats
da 55 a 70
1 CF
20 CF
CF

TER09-1123110N2
TD
Self-leveling 3D Scopic tile provided with 4 wings for 4 mm slats
da 70 a 110
1 CF
5 CF
CF

TER09-1123150N2
TD
Self-leveling 3D Scopic tile provided with 4 wings for 4 mm slats
da 110 a 150
1 CF
5 CF
CF

TER09-1123170N2
TD
Self-leveling 3D Scopic tile provided with 4 wings for 4 mm slats
da 150 a 170
1 CF
5 CF
CF

TER09-1123200N2
TD
Self-leveling 3D Scopic tile provided with 4 wings for 4 mm slats
da 170 a 200
1 CF
5 CF
CF

TER09-1123240N2
TD
Self-leveling 3D Scopic tile provided with 4 wings for 4 mm slats
da 205 a 240
1 CF
5 CF
CF

TER09-1123275N2
TD
Self-leveling 3D Scopic tile provided with 4 wings for 4 mm slats
da 240 a 275
1 CF
5 CF
CF

TER09-1123310N2
TD
Self-leveling 3D Scopic tile provided with 4 wings for 4 mm slats
da 275 a 310
1 CF
5 CF
CF

TER09-1123340N2
TD
Self-leveling 3D Scopic tile provided with 4 wings for 4 mm slats
da 310 a 340
1 CF
5 CF
CF

TER09-1123370N2
TD
Self-leveling 3D Scopic tile provided with 4 wings for 4 mm slats
da 340 a 370
1 CF
5 CF
CF

TER09-1123400N2
TD
Self-leveling 3D Scopic tile provided with 4 wings for 4 mm slats
da 370 a 400
1 CF
5 CF
CF

TER09-1123430N2
TD
Self-leveling 3D Scopic tile provided with 4 wings for 4 mm slats
da 400 a 430
1 CF
5 CF
CF

TER09-1123465N2
TD
Self-leveling 3D Scopic tile provided with 4 wings for 4 mm slats
da 430 a 465
1 CF
5 CF
CF

TER09-1123500N2
TD
Self-leveling 3D Scopic tile provided with 4 wings for 4 mm slats
da 465 a 500
1 CF
5 CF
CF

TER09-1123CHI
TD
Adjustment key for 3D Scopic tile support
-
-
-
PZ
