Draining Tile Accessories | Ramps & Corners?noresize

1 /

Product Description

 close-icon minus-icon

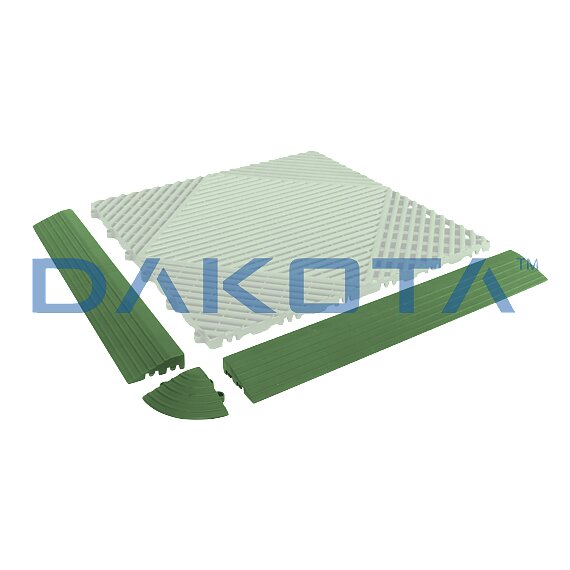

These accessories are perfectly integrated with drainage tiles while guaranteeing a perfect lateral finishing.

The ramps and the corners have a modular interlocking system of 2 different types:

  • Ramp with “female” interlocking system
  • Ramp with “male” interlocking system
  • Corner for with “female” interlocking system
  • Corner for with “female-female” interlocking system

Ramps are sold in bags of 10 pieces each

Materials used

 close-icon minus-icon

Both ramps and corners are made of PP (polypropylene).

Use

 close-icon minus-icon

Ramps and corners can be matched together and the very easy looking system guarantee a quick positioning and use. These products are perfect where there is a need to create a stable and removable outdoor flooring, to be used in residential areas or garden intended for garden furniture and/or recreational activities and/or walkways.

Articles

minus-icon
Product Code/Name Download Dimension Article Info
Ramp with “female” hooking for draining tile - Red Enlarge search-icon
GAR01-0030R

Ramp with “female” hooking for draining tile - Red

close-icon
TD 		400X60 h .18

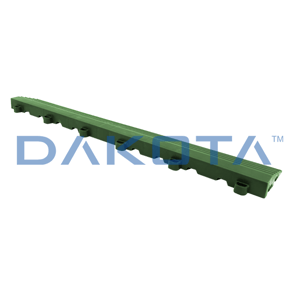

Ramp with “female” hooking for draining tile - Green Enlarge search-icon
GAR01-0030V

Ramp with “female” hooking for draining tile - Green

close-icon
TD 		400X60 h .18

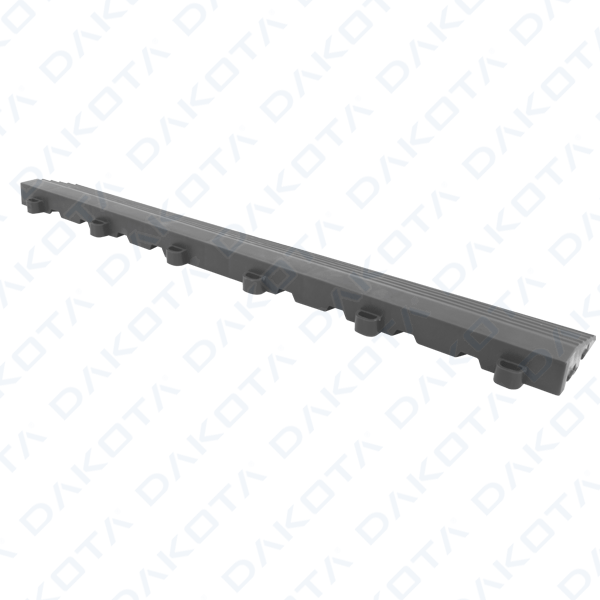

Ramp with “female” hooking for draining tile - Grey Enlarge search-icon
GAR01-0030GC

Ramp with “female” hooking for draining tile - Grey

close-icon
TD 		400X60 h .18

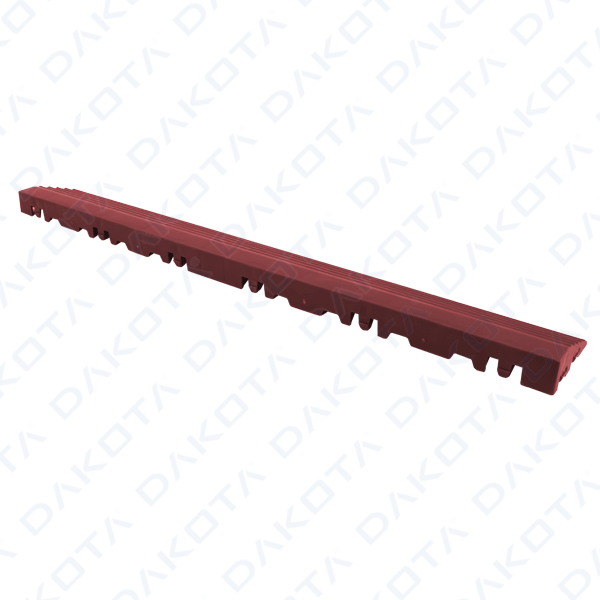

Ramp with “male” hooking for draining tile - Red Enlarge search-icon
GAR01-0031R

Ramp with “male” hooking for draining tile - Red

close-icon
TD 		400X60 h .18

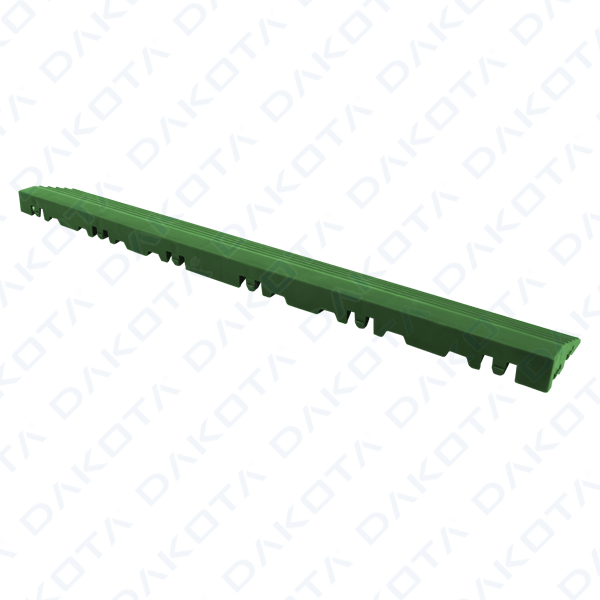

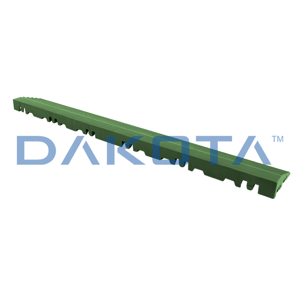

Ramp with “male” hooking for draining tile - Green Enlarge search-icon
GAR01-0031V

Ramp with “male” hooking for draining tile - Green

close-icon
TD 		400X60 h .18

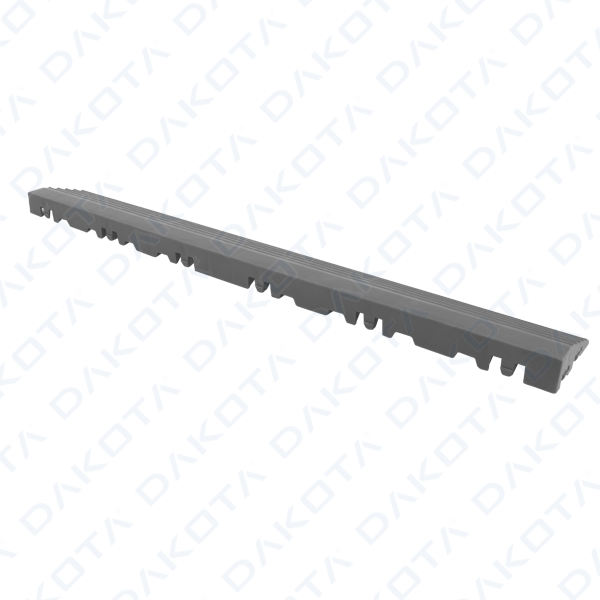

Ramp with “male” hooking for draining tile - Grey Enlarge search-icon
GAR01-0031GC

Ramp with “male” hooking for draining tile - Grey

close-icon
TD 		400X60 h .18

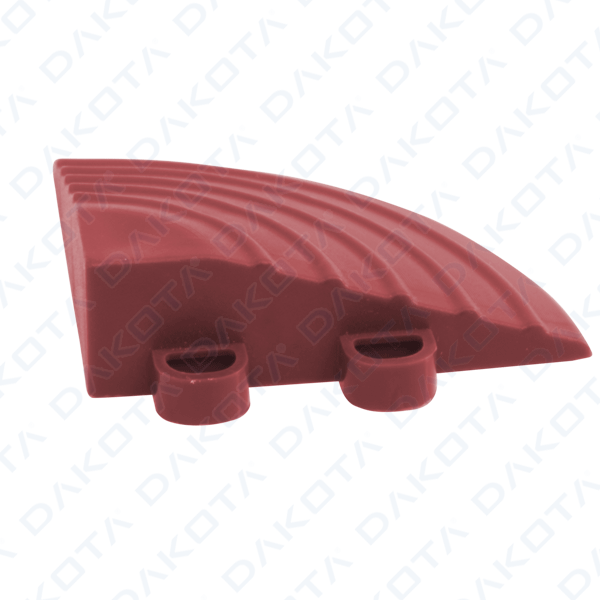

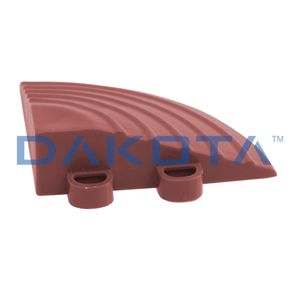

Corner with “female” hooking for draining tile - Red Enlarge search-icon
GAR01-0032R

Corner with “female” hooking for draining tile - Red

close-icon
TD 		60x60 h.18mm

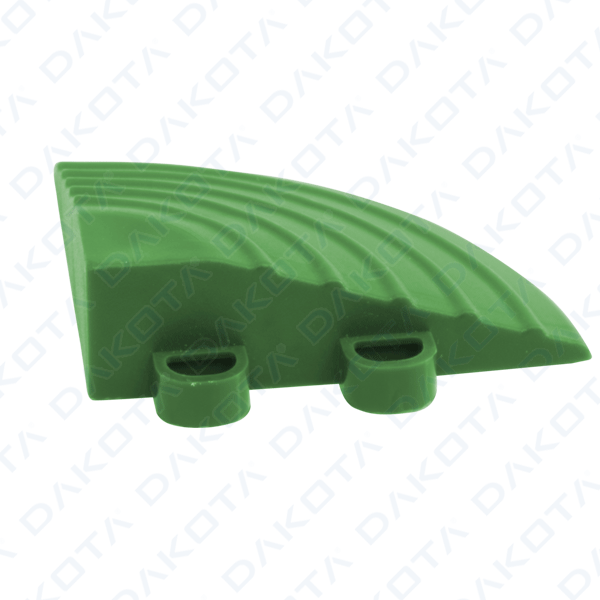

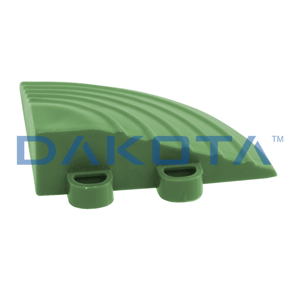

Corner with “female” hooking for draining tile - Green Enlarge search-icon
GAR01-0032V

Corner with “female” hooking for draining tile - Green

close-icon
TD 		60x60 h.18mm

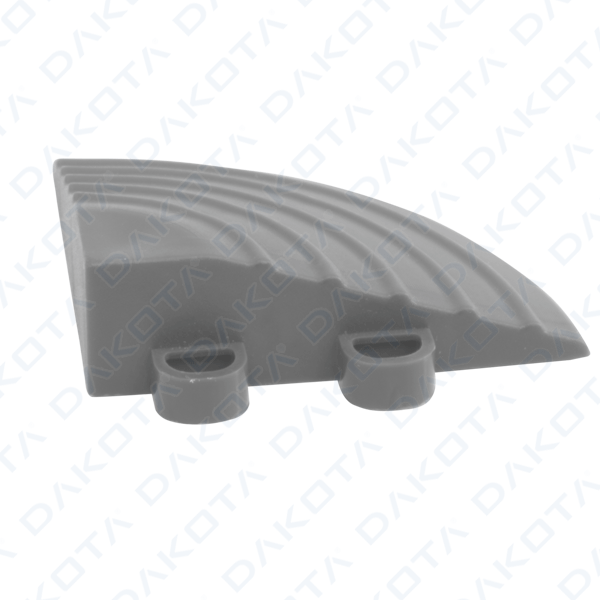

Corner with “female” hooking for draining tile - Grey Enlarge search-icon
GAR01-0032GC

Corner with “female” hooking for draining tile - Grey

close-icon
TD 		60x60 h.18mm

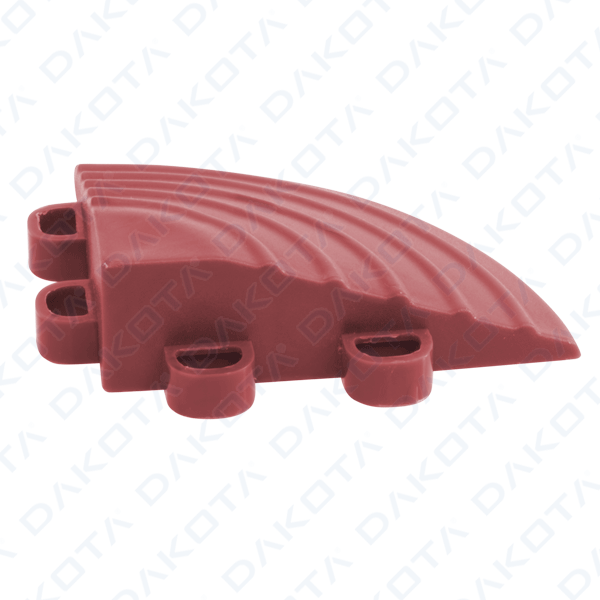

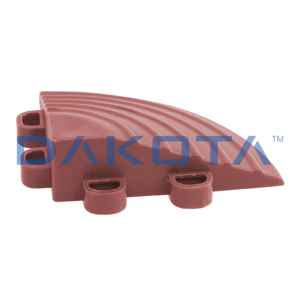

Corner with “female-female” hooking for draining tile - Red Enlarge search-icon
GAR01-0033R

Corner with “female-female” hooking for draining tile - Red

close-icon
TD 		60x60 h.18mm

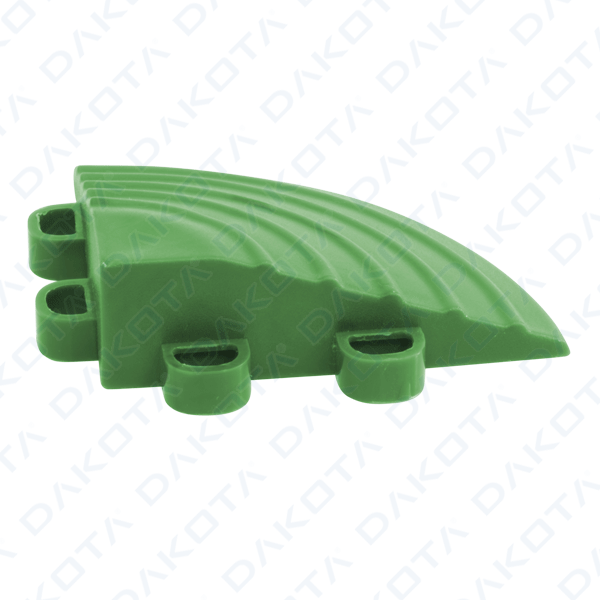

Corner with “female-female” hooking for draining tile - Green Enlarge search-icon
GAR01-0033V

Corner with “female-female” hooking for draining tile - Green

close-icon
TD 		60x60 h.18mm
Corner with “female-female” hooking for draining tile - Grey Enlarge search-icon
GAR01-0033GC

Corner with “female-female” hooking for draining tile - Grey

close-icon
TD 		60x60 h.18mm

Download Legends

TD

TD

Technical Datasheet
