Shoulder element and windowsill wedge
Window Sill Edge Trim?noresize
Window Sill Edge Trim
Window Sill Edge Trim

1 /

Product Description

 close-icon minus-icon

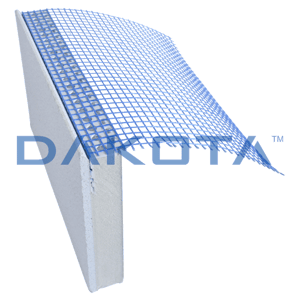

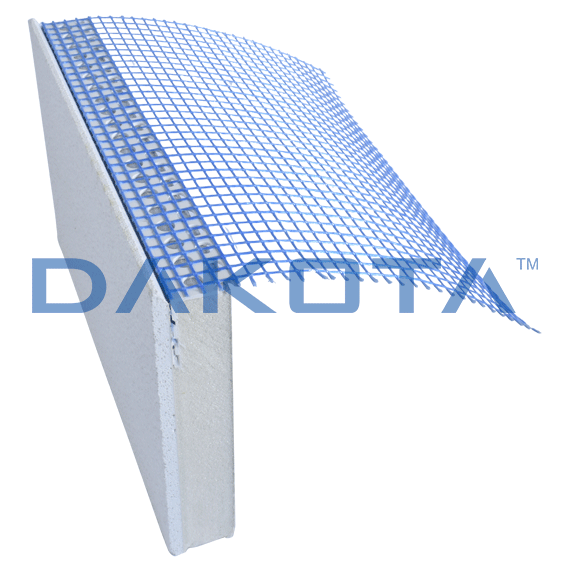

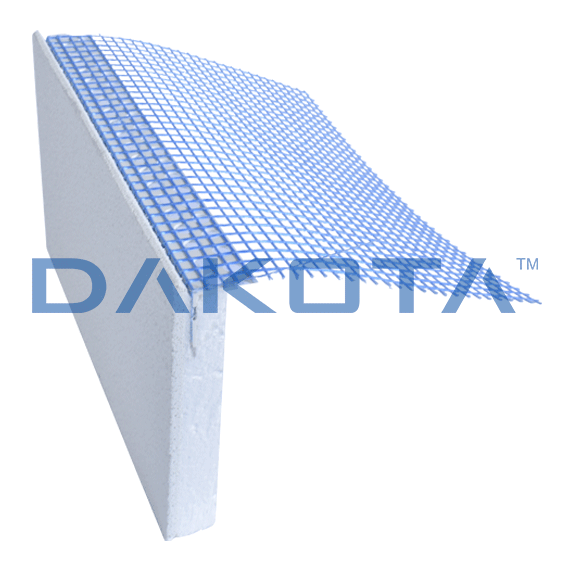

The shoulder element and windowsill wedge thermally insulate the soffit of doors, french doors and windows. The Shoulder element is available in EPS, polyurethane or Mineral Wool, while the sill support wedge is available in EPS only. They can be finished with all coatings for exterior insulation, thus respecting the aesthetics and color of the facade.

This system consists of an insulating element coated with reinforced skim coat, corner profile and fiberglass mesh for connection to the facade coat. It is possible to combine them with the parapet profiles.

Materials used

 close-icon minus-icon

Shoulder element made of Expanded Polystyrene (EPS), Polyurethane (PU), Mineral Wool (LM). Windowsill wedge made of Expanded Polystyrene (EPS).

Use

 close-icon minus-icon

Used for thermal insulation of the soffits of doors, french doors and windows.

Articles

minus-icon
Product Code/Name Download Dimension Article Info
Shoulder Profile in EPS Enlarge search-icon
ZIN35-1778E/316

Shoulder Profile in EPS

close-icon
TD 		300 x 1600 sp. 24 mm
Shoulder Profile in EPS Enlarge search-icon
ZIN35-1778E/325

Shoulder Profile in EPS

close-icon
TD 		300 x 2500 sp 24 mm
Shoulder Profile in EPS Enlarge search-icon
ZIN35-1778E/416

Shoulder Profile in EPS

close-icon
TD 		400 x 1600 sp. 24 mm
Shoulder Profile in EPS Enlarge search-icon
ZIN35-1778E/425

Shoulder Profile in EPS

close-icon
TD 		400 x 2500 sp. 24 mm.
Shoulder element in PU Enlarge search-icon
ZIN35-1778P/316

Shoulder element in PU

close-icon
TD 		300 x 1600 sp. 24 mm
Shoulder element in PU Enlarge search-icon
ZIN35-1778P/416

Shoulder element in PU

close-icon
TD 		400 x 1600 sp. 24 mm
Shoulder element in PU Enlarge search-icon
ZIN35-1778P/325

Shoulder element in PU

close-icon
TD 		300 x 2500 sp 24 mm
Shoulder element in PU Enlarge search-icon
ZIN35-1778P/425

Shoulder element in PU

close-icon
TD 		400 x 2500 sp. 24 mm.

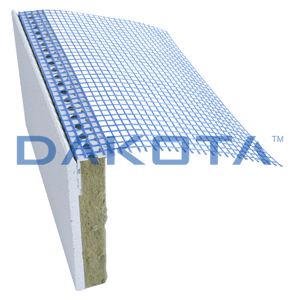

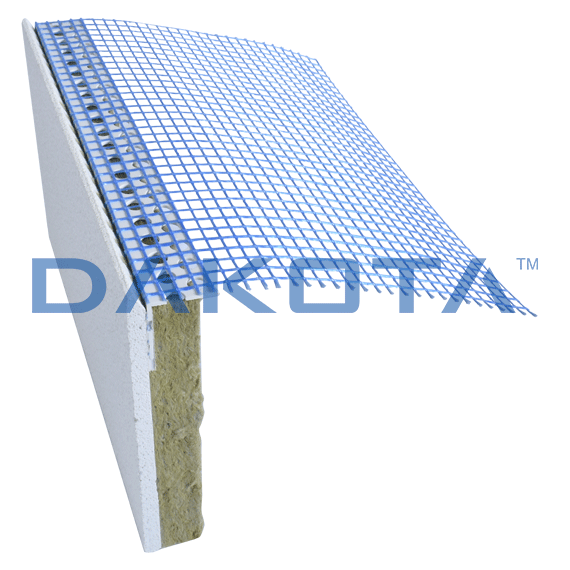

Shoulder element in Mineral Wool Enlarge search-icon
ZIN35-1778L/316

Shoulder element in Mineral Wool

close-icon
TD 		300 x 1600 sp. 24 mm
Shoulder element in Mineral Wool Enlarge search-icon
ZIN35-1778L/325

Shoulder element in Mineral Wool

close-icon
TD 		300 x 2500 sp 24 mm
Shoulder element in Mineral Wool Enlarge search-icon
ZIN35-1778L/416

Shoulder element in Mineral Wool

close-icon
TD 		400 x 1600 sp. 24 mm
Shoulder element in Mineral Wool Enlarge search-icon
ZIN35-1778L/425

Shoulder element in Mineral Wool

close-icon
TD 		400 x 2500 sp. 24 mm.
Cuneo Davanzale Enlarge search-icon
ZIN35-1768/180

Cuneo Davanzale

close-icon
TD 		180 x 2700 mm.
Cuneo Davanzale Enlarge search-icon
ZIN35-1768/240

Cuneo Davanzale

close-icon
TD 		240 x 2.700 mm

Download Legends

TD

TD

Technical Datasheet
