Round angular water outlet
Round Scupper Drain?noresize

1 /

Product Description

 close-icon minus-icon

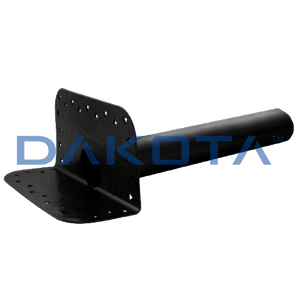

Scupper drain consisting of a flange at an angle and a circular tube with a length of 500mm.

Materials used

 close-icon minus-icon
Made of TPE (thermoplastic elastomer).

Use

 close-icon minus-icon
Used for the complete evacuation of rainwater in the shell side.

Articles

minus-icon
Product Code/Name Download Dimension Article Info
Round draining water outlet Enlarge search-icon
BOC02-1115T8

Round draining water outlet

close-icon
TD 		ø 80 mm
Round draining water outlet Enlarge search-icon
BOC02-1115T10

Round draining water outlet

close-icon
TD 		ø 100 mm

Download Legends

TD

TD

Technical Datasheet
