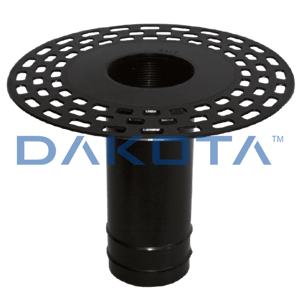

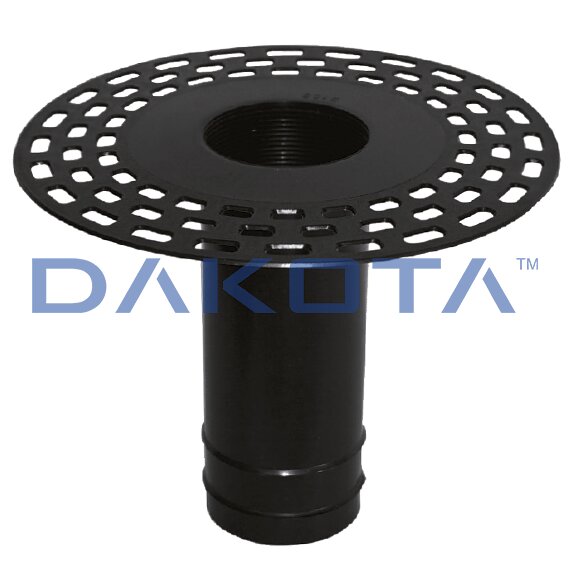

Draining water outlet with perforate flange

Request information
  • Certifications
  • Product sheet
  • Articles
  • Related products
  • Accessories
  • Similar products
  • Share on

Product sheet

Description

Monolithic filler consists of a perforated flange to improve the connection to the waterproofing sheath, a tube of length 300 mm and diameters of 80, 100 and 120 mm.

Material

Made of TPE (thermoplastic elastomer).

Use

Used for vertical evacuation of rainwater from flat roofs.

Articles

Code
Commercial Description
Dimensions
Q.ty/pkg
Q.ty/pallet
Selling Unit

BOC01-1109F
TD
Draining water outlet with perforate flange
ø 63 mm
25 PZ
150 PZ
PZ

BOC01-1109SF
TD
Draining water outlet with perforate flange
ø 75 mm
25 PZ
150 PZ
PZ

BOC01-1110F
TD
Draining water outlet with perforate flange
ø 80 mm
25 PZ
150 PZ
PZ

BOC01-1110SF
TD
Draining water outlet with perforate flange
ø 90 mm
25 PZ
150 PZ
PZ

BOC01-1111F
TD
Draining water outlet with perforate flange
ø 100 mm
20 PZ
120 PZ
PZ

BOC01-1111SF
TD
Draining water outlet with perforate flange
ø 110 mm
20 PZ
120 PZ
PZ

BOC01-1112F
TD
Draining water outlet with perforate flange
ø 120 mm
20 PZ
120 PZ
PZ
Legend:
TD
Technical Datasheet
Packaging available

Articles

Delete All
BOC01-1109F
Draining water outlet with perforate flange
Dimensions: ø 63 mm
Q.ty/pkg: 25 PZ
Q.ty/pallet: 150 PZ
Selling Unit: PZ
TD
More info
BOC01-1109SF
Draining water outlet with perforate flange
Dimensions: ø 75 mm
Q.ty/pkg: 25 PZ
Q.ty/pallet: 150 PZ
Selling Unit: PZ
TD
More info
BOC01-1110F
Draining water outlet with perforate flange
Dimensions: ø 80 mm
Q.ty/pkg: 25 PZ
Q.ty/pallet: 150 PZ
Selling Unit: PZ
TD
More info
BOC01-1110SF
Draining water outlet with perforate flange
Dimensions: ø 90 mm
Q.ty/pkg: 25 PZ
Q.ty/pallet: 150 PZ
Selling Unit: PZ
TD
More info
BOC01-1111F
Draining water outlet with perforate flange
Dimensions: ø 100 mm
Q.ty/pkg: 20 PZ
Q.ty/pallet: 120 PZ
Selling Unit: PZ
TD
More info
BOC01-1111SF
Draining water outlet with perforate flange
Dimensions: ø 110 mm
Q.ty/pkg: 20 PZ
Q.ty/pallet: 120 PZ
Selling Unit: PZ
TD
More info
BOC01-1112F
Draining water outlet with perforate flange
Dimensions: ø 120 mm
Q.ty/pkg: 20 PZ
Q.ty/pallet: 120 PZ
Selling Unit: PZ
TD
More info
Legend:
TD
Technical Datasheet
