Scupper Drain
Scupper Drain
Scupper Drain

1 /

Product Description

 close-icon minus-icon

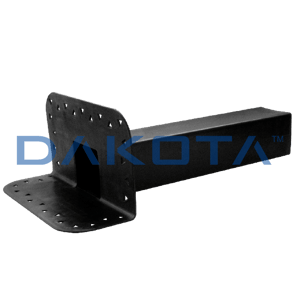

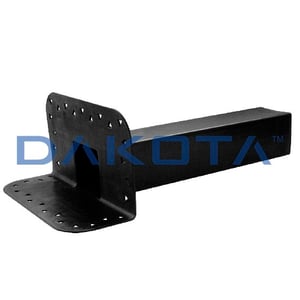

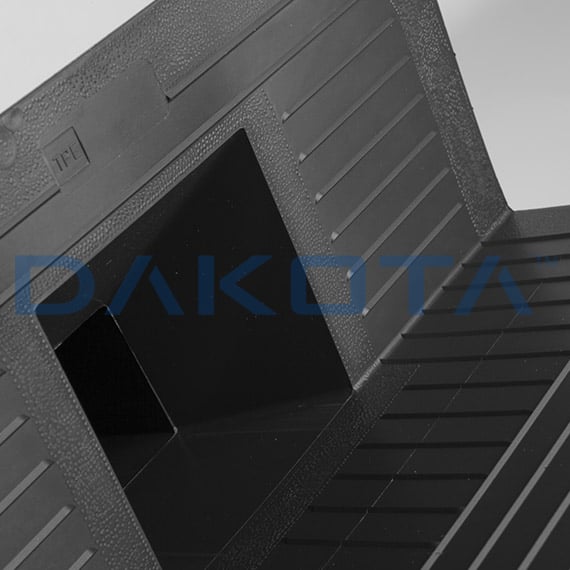

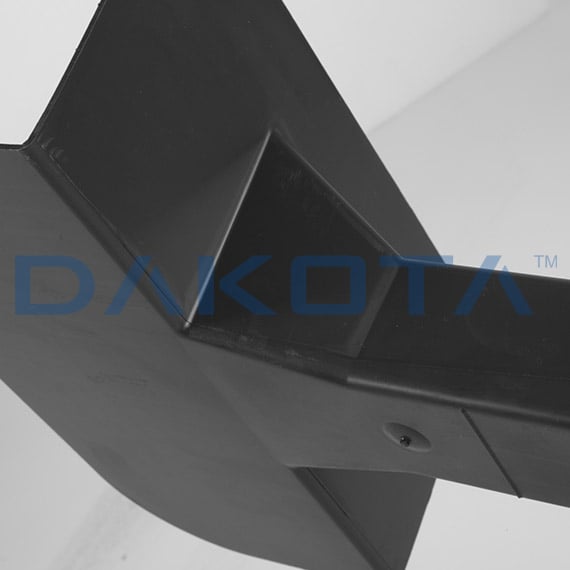

Scupper drain consisting of a flange corner and a tube of square 100 x 100 mm length of 500 mm.

Materials used

 close-icon minus-icon

Made of TPE (thermoplastic elastomer).

Use

 close-icon minus-icon

Used for the complete evacuation of rainwater in the shell side.

Articles

minus-icon
Product Code/Name Download Dimension Article Info
Water outlet Enlarge search-icon
BOC02-1115

Water outlet

close-icon
TD 		100 x 100 mm
Angular framework 10X10 Enlarge search-icon
BOC02-1116RA

Angular framework 10X10

close-icon
TD 		ø 80 mm
Angular framework 10X10 Enlarge search-icon
BOC02-1117

Angular framework 10X10

close-icon
TD 		ø 100 mm

Download Legends

TD

TD

Technical Datasheet
