Product Description

 close-icon minus-icon

Keradeck® 30 joist in aluminum for decking and paving. The peculiar structure of its surfaces allows on one side the application of clips for decking boards, and on the other side the laying of tiles for external raised floors.

The use of the adapter guarantees a perfect fixing with Arkimede 18, 24, 35, 41, 60, 66 and 115 and all Hercules Paving supports..

The connectors allow linear, T-shaped and overlapping junctions between several Keradeck® joists.

The cross, once attached to the paving side, allows the equidistant laying of tiles for outdoor flooring.

Materials used

 close-icon minus-icon

Adapter in PP (polypropylene), joist made of aluminum and accessories made of PA (polyamide).

Use

 close-icon minus-icon

This product allows the making of a supporting structure for the laying of outdoor decking and paving.

It is suggested to place the Arkimede supports every 50 cm

Articles

minus-icon
Product Code/Name Download Dimension Article Info

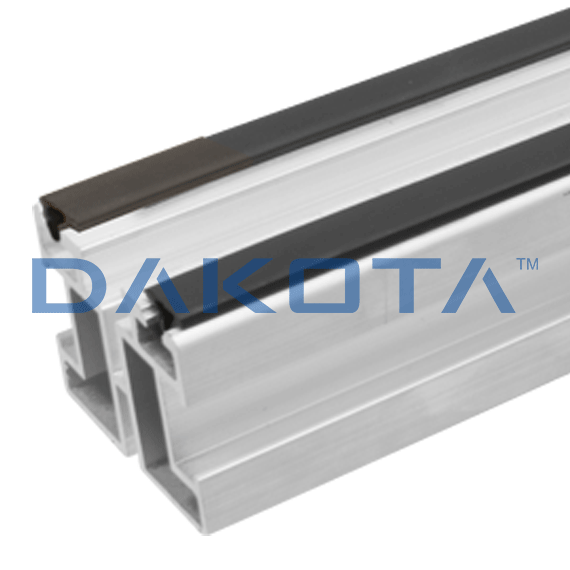

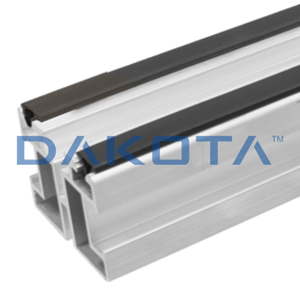

Keradek® Aluminum Joist Enlarge search-icon
TER09-2299

Keradek® Aluminum Joist

2.000 x 40 x 30 mm

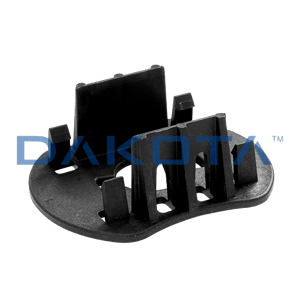

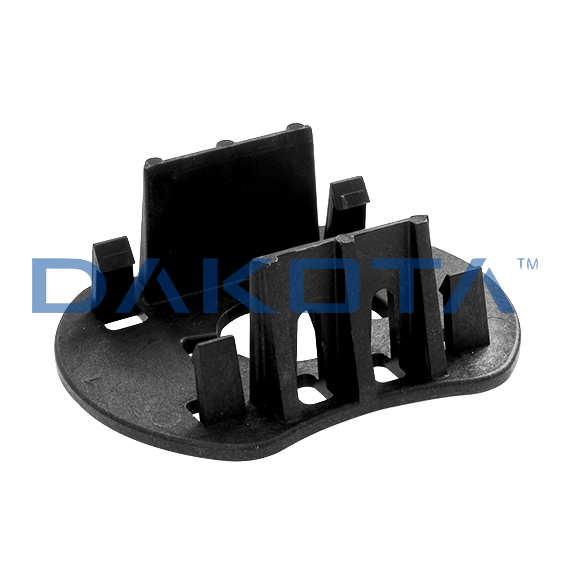

Plastic adapter for Arkimede Steel Joist Enlarge search-icon
TER09-1151

Plastic adapter for Arkimede Steel Joist

-

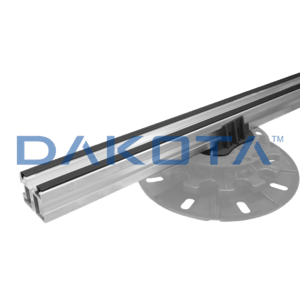

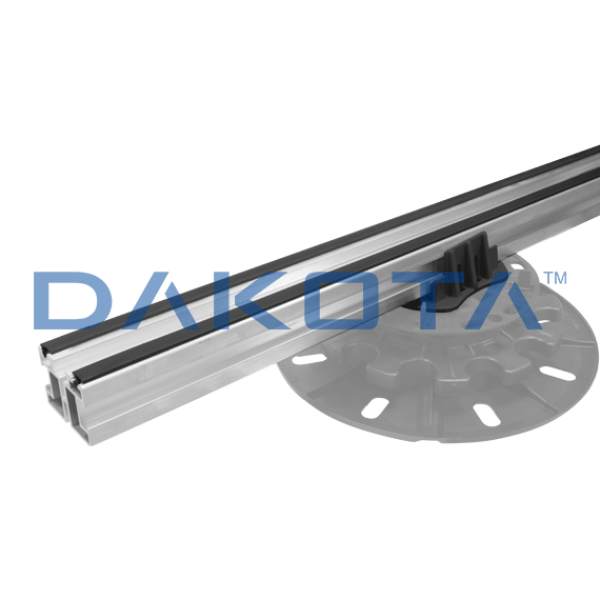

Keradeck aluminum joist and adapter Enlarge search-icon
TER09-2299K

Keradeck aluminum joist and adapter

2.000 mm
Anti-noise rubber strip for Keradeck® Enlarge search-icon
TER09-2299/G

Anti-noise rubber strip for Keradeck®

8,9 x 100 m.
4-way baffle for Keradeck 30 - Arkimede and Hercules Enlarge search-icon
TER09-2299/4AH

4-way baffle for Keradeck 30 - Arkimede and Hercules

-
Paving spacer - 4 mm Enlarge search-icon
TER09-2299/A

Paving spacer - 4 mm

58 x 37 x 18 mm
Enlarge search-icon
TER09-2299/A2

Spessore 2 mm

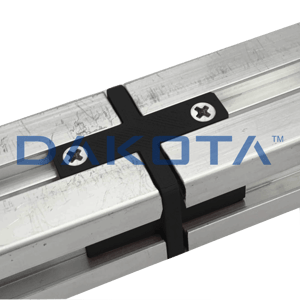

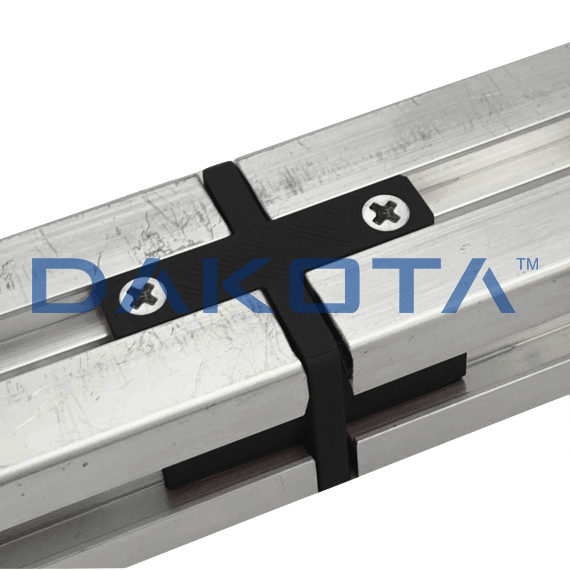

Linear Joist Connector Enlarge search-icon
TER09-2299/B

Linear Joist Connector

44,5 x 30 x 6,7

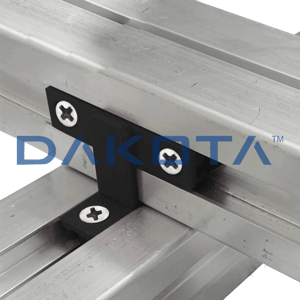

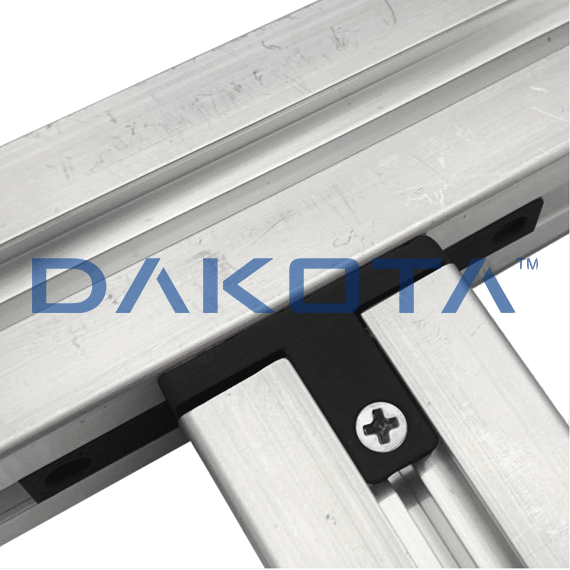

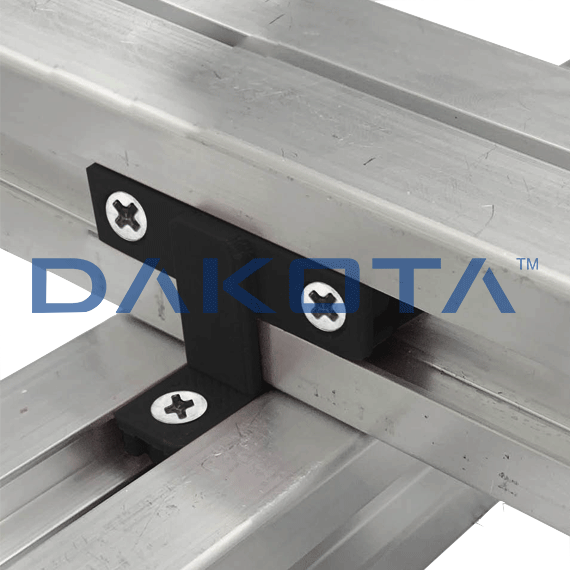

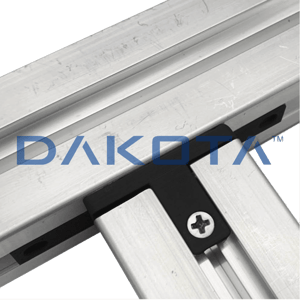

“T” Joist Connector Enlarge search-icon
TER09-2299/C

“T” Joist Connector

81 x 40 x 31,2 mm
Overlap Mounting Joist Connector Enlarge search-icon
TER09-2299/D

Overlap Mounting Joist Connector

67 x 44 x 25 mm

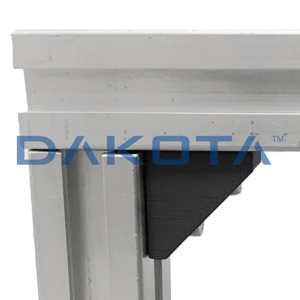

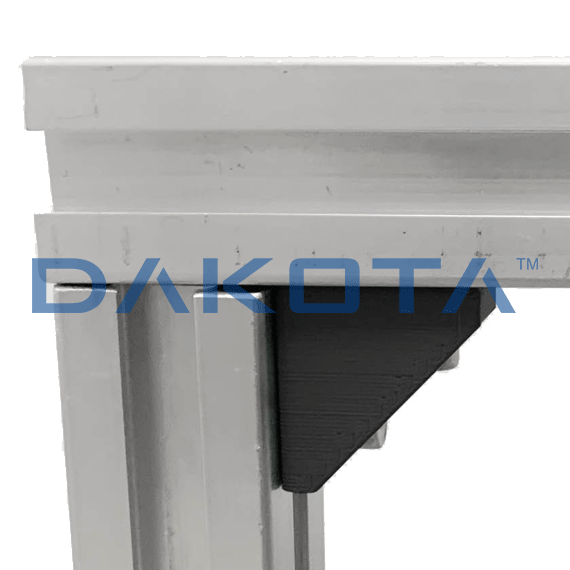

Corner reinforcement (bolt and screw NOT included) Enlarge search-icon
TER09-2299/E

Corner reinforcement (bolt and screw NOT included)

30 x 30 x 30 mm
Fixing screw for aluminium Enlarge search-icon
LV090

Fixing screw for aluminium

⌀ 3,5 x 16 mm
Enlarge search-icon
TER09-2299/A3

Spessore 3 mm
Enlarge search-icon
TER09-2299/A5

Spessore 5 mm
