Finned & Plated Formwork Tube Spacer
Finned & Plated Formwork Tube Spacer
Finned & Plated Formwork Tube Spacer

1 /

Product Description

 close-icon minus-icon
Made in 2 meters bars, ø 9:12 mm finned. Made in 2 meters bars, ø 30 mm dish

Materials used

 close-icon minus-icon
Made of thermoset plastic.

Installation

 close-icon minus-icon
Specific use in construction. It keeps the formwork horizontally equidistant during the pour of concrete.

Articles

minus-icon
Product Code/Name Download Dimension Article Info

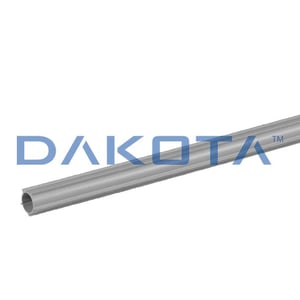

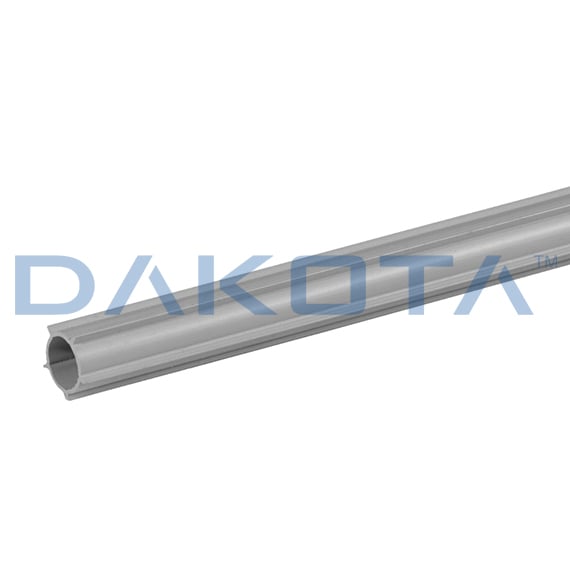

Finned and plated Tube Spacer Enlarge search-icon
PRO17-1623

Finned and plated Tube Spacer

close-icon
TD 		ø 9 x 2.000 mm
Finned and plated Tube Spacer Enlarge search-icon
PRO17-1624

Finned and plated Tube Spacer

close-icon
TD 		ø 12 x 2.000 mm

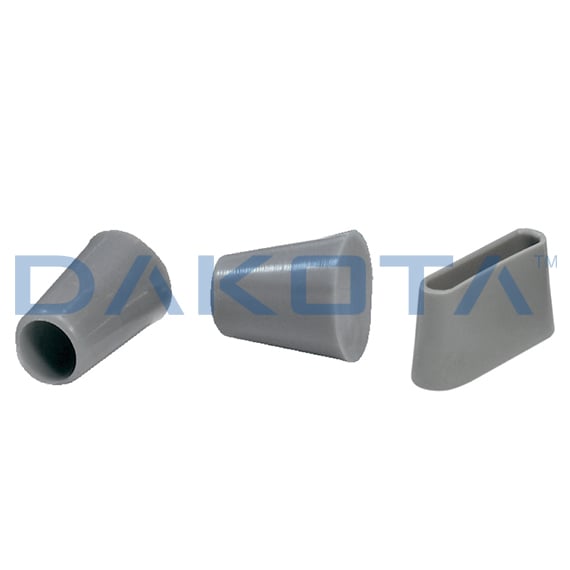

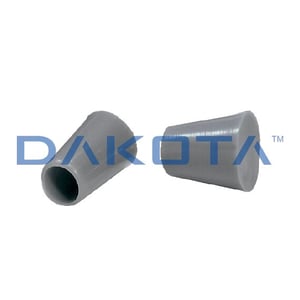

Finned cap Spacer d.9mm for PRO17-1623 Enlarge search-icon
PRO11-1651

Finned cap Spacer d.9mm for PRO17-1623

close-icon
TD 		ø 9 mm
Finned cap Spacer d.12mm for PRO17-1624 Enlarge search-icon
PRO11-1652

Finned cap Spacer d.12mm for PRO17-1624

close-icon
TD 		ø 12 mm

Download Legends

TD

TD

Technical Datasheet
