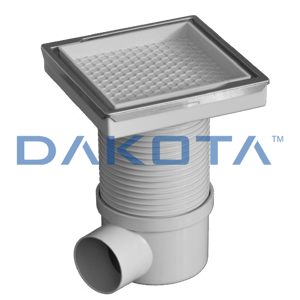

Syphoned gully with recessed cover and frame for tiles
Linear Drain Tile Insert with Recessed Cover and Frame?noresize
Linear Drain Tile Insert with Recessed Cover and Frame
Linear Drain Tile Insert with Recessed Cover and Frame
Linear Drain Tile Insert with Recessed Cover and Frame

1 /

Product Description

 close-icon minus-icon

Syphoned gully with recessed cover and frame for tiles, resistant to weathering and chemical elements, AISI 304 stainless steel frame, packed in blister.
The bottom outlet is provided with a gasket, it can be assembled easily to the manhole, whose height is adjustable from 0 to 80 mm.
The shape and adjustable grating allows a fast installation for a perfect siphon system, easily inspected.
Outlet dimensions: internal 45 mm, external 50 mm.

Materials used

 close-icon minus-icon

Made of PP (polypropylene). The frame is AISI 304 stainless steel.

Use

 close-icon minus-icon

The structure of the syphoned gully allows the collection and drainage of the waters throught the slot on the edge of the cover, standardizing the aesthetic of the floor.

Articles

minus-icon
Product Code/Name Download Dimension Article Info
Syphoned gully with recessed cover and frame for tiles Enlarge search-icon
TER07-1341

Syphoned gully with recessed cover and frame for tiles

close-icon
TD 		115 x 115 mm ext 130 x 130 mm

Download Legends

TD

TD

Technical Datasheet
