Syphoned gully with lateral exit
Drain Gully With Horizontal Outlet?noresize
Drain Gully With Horizontal Outlet
Drain Gully With Horizontal Outlet
Drain Gully With Horizontal Outlet
Drain Gully With Horizontal Outlet

1 /

Classification and standards

AISI 304

Product Description

 close-icon minus-icon

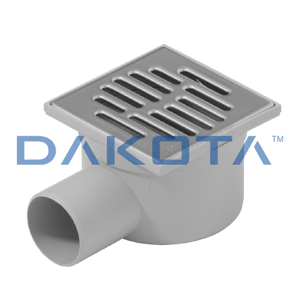

Drain gully, with stainless steel AISI 304 BA grating, resistant to weathering and chemical elements, packed in blister. The bottom outlet is provided with a gasket and it can be assembled easily to the cover, whose height is adjustable from 0 to 80 mm. The shape and adjustable grating of the drain gully allows a fast installation for a perfect siphon system, easily inspected. It's a Dakota patented product. Both available with PP or stainless steel frame and grating. Measures are 105 x 105 mm, the internal outlet dimension is 45 mm snd the external one is 50 mm.

Materials used

 close-icon minus-icon

Made of PP (polypropylene). The grating is AISI 304 stainless steel.

Use

 close-icon minus-icon

Used for the collection and drainage of stormwater or wash terraces waters, showers and areas where you need to collect waste water.

Articles

minus-icon
Product Code/Name Download Dimension Article Info
Syphoned Gully with Lateral Exit (PP Grating and Frame) Enlarge search-icon
TER07-1340

Syphoned Gully with Lateral Exit (PP Grating and Frame)

close-icon
TD 		105 x 105 mm

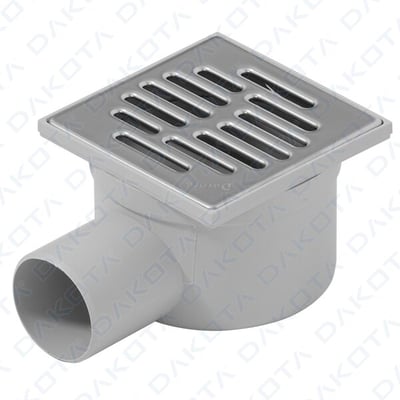

Syphoned Gully with Lateral Exit (Stainless Steel Grating and PP Frame) Enlarge search-icon
TER07-1340I

Syphoned Gully with Lateral Exit (Stainless Steel Grating and PP Frame)

close-icon
TD 		105 x 105 mm

Download Legends

TD

TD

Technical Datasheet
