Lowered syphoned gully 150x150
Floor Drain with Low Lateral Exit?noresize
Floor Drain with Low Lateral Exit
Floor Drain with Low Lateral Exit
Floor Drain with Low Lateral Exit
Floor Drain with Low Lateral Exit
Floor Drain with Low Lateral Exit

1 /

Classification and standards

AISI 304

Product Description

 close-icon minus-icon
ABS Adjustable Gully, with stainless steel AISI 304 BA or ABS gratings, measures 150 x 150 mm, packed in blister. The bottom outlet can be lowered oriented and rotated up to 360 degrees. The internal outlet dimension is 45 mm, the external one is 50 mm.

Materials used

 close-icon minus-icon
Made of ABS.

Use

 close-icon minus-icon
Used for drainage of rain water on the terraces, or on screeds little shimmed and/or where the slope does not allow the "elbow" attack to the outlet.

Articles

minus-icon
Product Code/Name Download Dimension Article Info

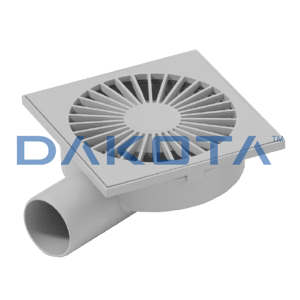

Lowered Syphoned Gully (PP Grating and Frame) Enlarge search-icon
TER07-1342

Lowered Syphoned Gully (PP Grating and Frame)

close-icon
TD 		150 x 150 mm

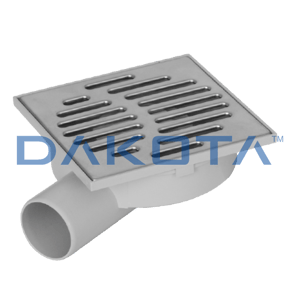

Lowered Syphoned Gully (Stainless Steel Grating and PP Frame) Enlarge search-icon
TER07-1342I

Lowered Syphoned Gully (Stainless Steel Grating and PP Frame)

close-icon
TD 		150 x 150 mm

Download Legends

TD

TD

Technical Datasheet
