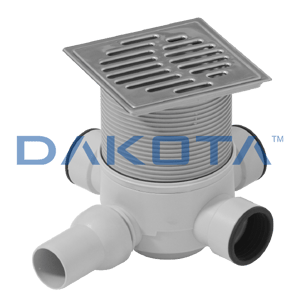

4-Way Syphoned Horizontal Floor Drain Gully
4-Way Syphoned Horizontal Floor Drain Gully
4-Way Syphoned Horizontal Floor Drain Gully
4-Way Syphoned Horizontal Floor Drain Gully
4-Way Syphoned Horizontal Floor Drain Gully
4-Way Syphoned Horizontal Floor Drain Gully
4-Way Syphoned Horizontal Floor Drain Gully

1 /

Product Description

 close-icon minus-icon

"4-Way" Syphoned gully, resistant to weathering and chemicals agents.
Consisting of 3 blind inlet, open as needed and provided with a rubber seal.
The fourth inlet, outlet, is provided with a bend joint. Available in telescopic version, with stainless steel frame and grating.
It is a Patented product by Dakota. Outlet dimensions: internal 45 mm, external 50 mm.

Materials used

 close-icon minus-icon

Made of PP (polypropylene). The frame is AISI 304 stainless steel.

Use

 close-icon minus-icon

Used to channel to a single point the otulet pipes of sink, shower and bidet, in order to facilitate any inspection and/or access for cleaning.

Articles

minus-icon
Product Code/Name Download Dimension Article Info

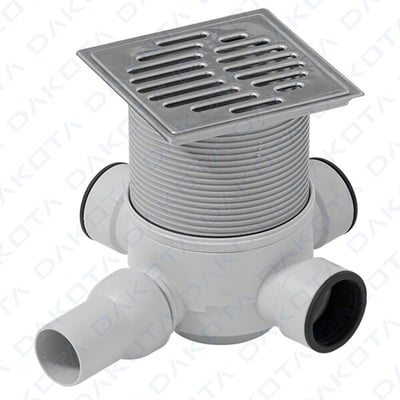

Telescopich Gully (Stainless Steel Grating and Frame) Enlarge search-icon
TER07-1345IT

Telescopich Gully (Stainless Steel Grating and Frame)

close-icon
TD 		115 x 115 mm
Telescopich Gully (Stainless Steel Grating and Frame) Enlarge search-icon
TER07-1346IT

Telescopich Gully (Stainless Steel Grating and Frame)

close-icon
TD 		150 x 150 mm

Download Legends

TD

TD

Technical Datasheet
