Product Description

 close-icon minus-icon
End caps, block system (anchor bracket) and gasket for channel.

Materials used

 close-icon minus-icon
PP for the end caps and pipe connection, PE-HD (high density polyethylene) for the block system and rubber gasket for the rounded connection.

Use

 close-icon minus-icon
The end caps and the bulkheads are used as terminals for the channel, the block system is used to block the grating inside the channel (following European Regulation EN 1433). Junction ø 110, together with the rubber gasket, converts the lower exit from ø 100 to ø 110 mm.

Articles

minus-icon
Product Code/Name Download Dimension Article Info

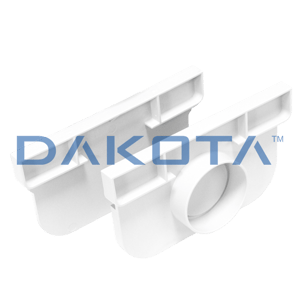

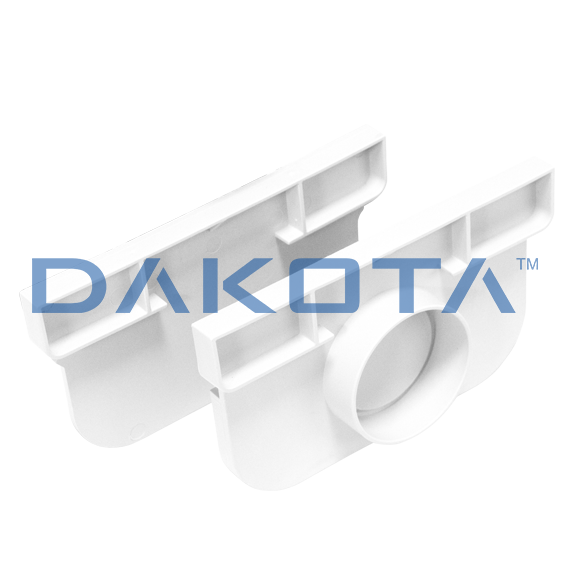

End caps set (2 pcs/pack) for pegasus plus - White Enlarge search-icon
POZ95-1300PMB

End caps set (2 pcs/pack) for pegasus plus - White

h. 75 mm

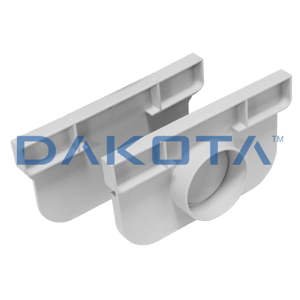

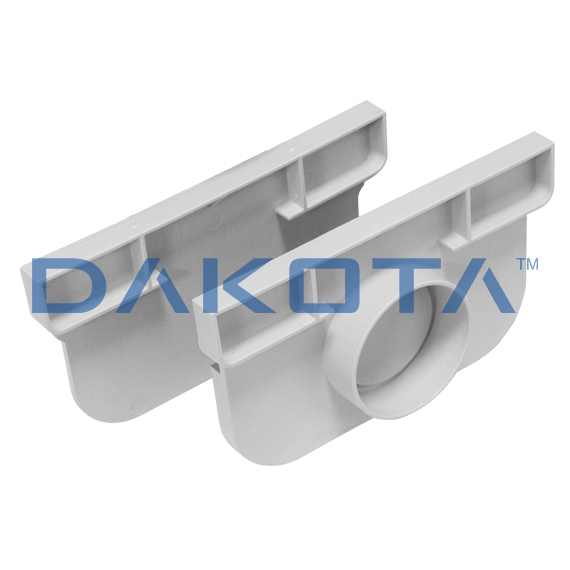

Set Open/Closed End Caps for Pegasus Plus - Grey Enlarge search-icon
POZ95-1300PM

Set Open/Closed End Caps for Pegasus Plus - Grey

h. 75 mm
Set Open/Closed End Caps for Pegasus Plus - Black Enlarge search-icon
POZ95-1300PMN

Set Open/Closed End Caps for Pegasus Plus - Black

h. 75 mm

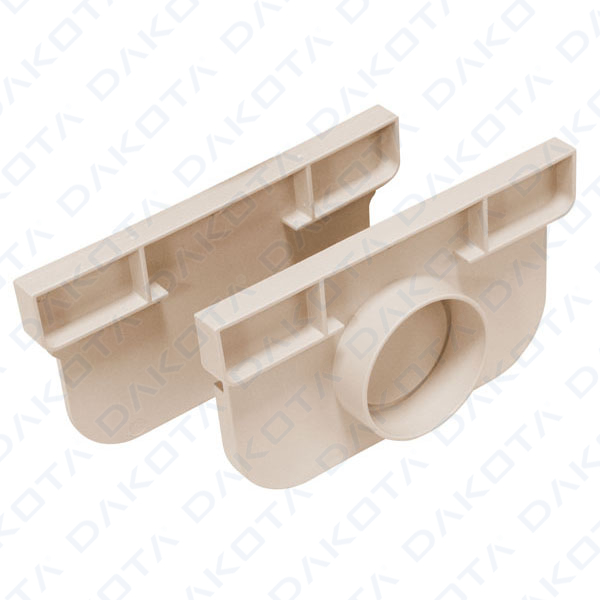

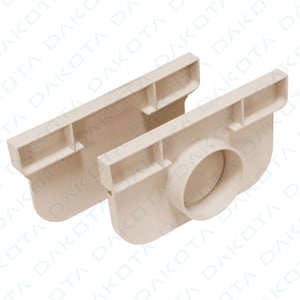

End caps set (2 pcs/pack) for pegasus plus - Sand Enlarge search-icon
POZ95-1300PMS

End caps set (2 pcs/pack) for pegasus plus - Sand

h. 75 mm

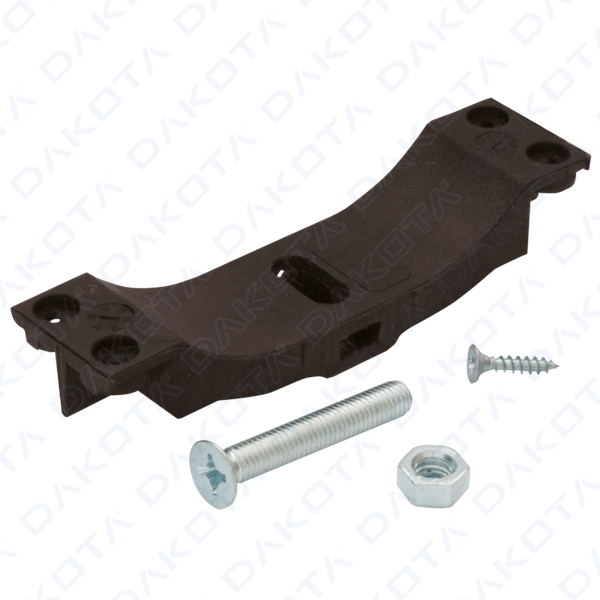

Block System 130 Enlarge search-icon
POZ95-1307B

Block System 130

close-icon
TD 		130 mm
Block System Skat Enlarge search-icon
POZ95-1310B

Block System Skat

130 mm
Pipe connection black ø 110 Enlarge search-icon
POZ95-1321N

Pipe connection black ø 110

ø110 mm
Gasket for channel Enlarge search-icon
POZ95-1319

Gasket for channel

ø100 / ø110 mm
Pipe connection grey ø 110 Enlarge search-icon
POZ95-1321

Pipe connection grey ø 110

ø110 mm

Download Legends

TD

TD

Technical Datasheet
