Catch Basin Accessories

1 /

Product Description

 close-icon minus-icon

Dakota's family of PP catchpits consists of a full range of accessories for wastewater management and installation:

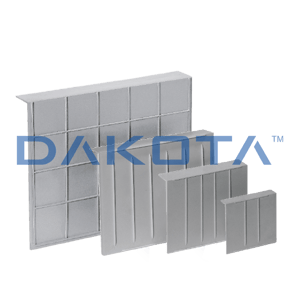

  • The Siphonated Plate is placed inside the catch-pit, along the grooves.It is available in various sizes: 200 x 200, 300 x 300, 400 x 400 and 550 x 550 mm in grey colour. The siphon plate is NOT compatible with SMART line of catch-pits.

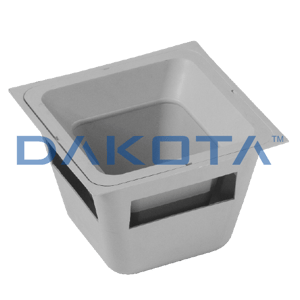

  • TThe bell siphon is an accessory applicable to all our catch-pits. Available in the dimensions of 300 x 300 and 400 x 400 mm in Grey Colour

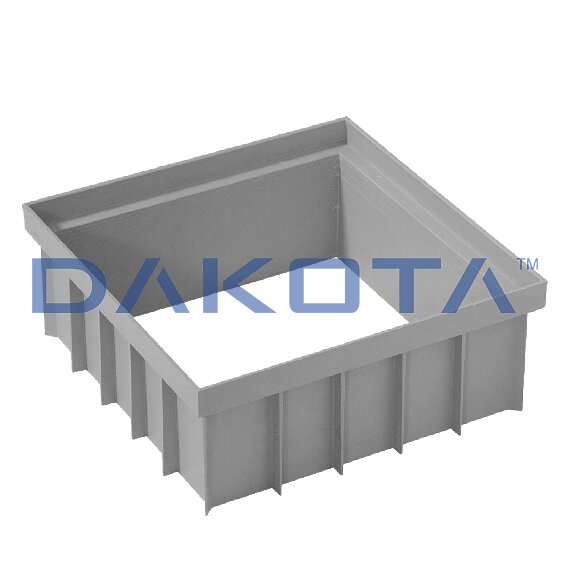

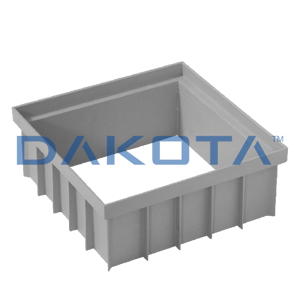

  • The extension allows 10 cm extension of the catch pit's height. Available in the sizes of 200 x 200, 300 x 300, 400 x 400, 550 x 550 mm. Grey colour.

Materials

 close-icon minus-icon

All these accessories are made of PP (poluprolylene)

Installation

 close-icon minus-icon
  • The Siphonated Plate is used to allow the siphoning of the cacth-pit, thanks to the easy application system.
  • Te bell siphon is used to create a "siphon effect" inside the catch-pits. It is very easily to apply, to inspect and structured to prevent the emission of bad odors due the stagnation of water. Perfect matching with the grating catch-pit cover.
  • The extension is put on the top of the catch-pit, in order to increase the height of 10 cm especilly when it is installed in sloped surfaces.

Articles

minus-icon
Product Code/Name Download Dimension Article Info
POZ05-1376

Catch Pit Extension 300 x 300mm, h.100mm

close-icon
TD 		300 x 300 mm
POZ05-1377

Catch Pit Extension 400 x 400mm, h.100mm

close-icon
TD 		400 x 400 mm
POZ05-1377B

Catch Pit Extension 550 x 550mm, h.130mm

close-icon
TD 		550 x 550 mm
POZ05-1382

Catch Pit Extension 200x x200 mm - h. 100mm

close-icon
TD 		200 x 200 mm
POZ06-1378

Siphonated Plate

close-icon
TD 		200 x 200 mm
POZ06-1379

Siphonated Plate

close-icon
TD 		300 x 300 mm
POZ06-1380

Siphonated Plate

close-icon
TD 		400 x 400 mm
POZ06-1389

Siphonated Plate

close-icon
TD 		550 x 550 mm
POZ07-6821N

Bell Siphon

close-icon
TD 		300 x 300 mm
POZ07-6822N

Bell Siphon

close-icon
TD 		400 x 400 mm

Download Legends

TD

TD

Technical Datasheet
