Product Description

 close-icon minus-icon

Insulation anchor with 67 mm helical body with integrated expansion body ∅ 8 mm and fixing screw (torx 30).
A single size for panels from 100mm up to 400mm thickness, applicable on various types of insulation:

   •   PUR

   •   Mineral wools


   •   EPS

   •   Phenolic resin


The product guarantees the absence of thermal bridge (Value 0.000W / K) and can be used both on new buildings and on the renovation of existing buildings, compliant with ETAG014, and can be used on supports of classes A, B, C, D and E.

Materials used

 close-icon minus-icon

The anchor is made of PA (polyamide), expansion body in PP and fixing screw in galvanized steel.
The regulation bar is made of galvanized steel and the finishing plug in EPS (polystyrene).

Use

 close-icon minus-icon

Used for mechanical anchoring of insulating panels (although minerals, EPS, phenolic resin) and for the main types of masonry, supporting the load and stress of traction "to tear".

Articles

minus-icon
Product Code/Name Download Dimension Article Info

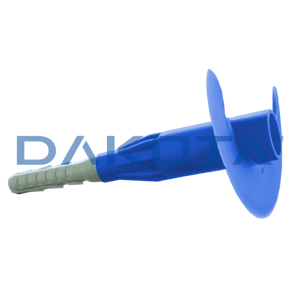

SGR-UNI Universal Helicoidal Anchor Enlarge search-icon
TER11-3400

SGR-UNI Universal Helicoidal Anchor

close-icon
TD 		Da 100 a 400 mm

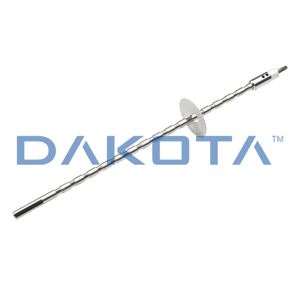

Regulation bar Enlarge search-icon
TER11-3401

Regulation bar

close-icon
TD 		-

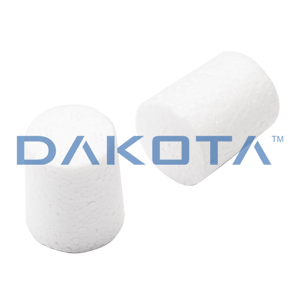

Finishing plug Enlarge search-icon
TER11-3402

Finishing plug

close-icon
TD 		-

Download Legends

TD

TD

Technical Datasheet
