Classification and standards

AISI 304

Product Description

 close-icon minus-icon

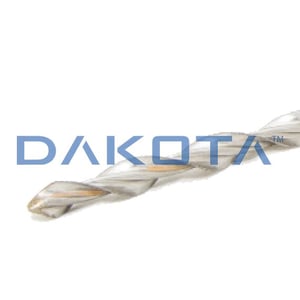

Helikon Pro helical bar is made of AISI 304 or AISI 316 stainless steel and is used for connections, anchoring, dry seams and reinforced grout joint stitching even in exposed masonry. It is CE marked according to UNI EN 845-1: 2003, UNI EN ISO 846-5:2012 and UNI EN ISO 846-7:2013.

Materials used

 close-icon minus-icon

AISI 304 or AISI 316 stainless steel

Use

 close-icon minus-icon

Helikon Pro helical bars are used to carry out reinforced joint stylation in "face" masonry, masonry connections, and limiting and restoring crack frames.

Some examples of applications are:

- Crack seams.
- Connections between masonry panels that are not well-bonded to each other.
- Connection between masonry panels and wooden elements.
- Connections on systems used as anti-liftoff garrison of curtain walls.
- Stitching from the soffit of arches.

They can be applied on multiple substrates such as solid or half-filled brick, tuff, stone, unfired earth, wood and concrete without the use of mortars or chemical anchors for grouting.

Some advantages of Helikon Pro:

  • quick and easy installation;

  • mechanical type connection without the use of mortars or chemical anchors;

  • specifications for non-invasive interventions;

  • high durability and strength;

  • They allow reinforcement of masonry while ensuring the aesthetics of the exposed face.

Helikon PRO helical bars can be cut to size with flexible or suitable shears.

Articles

minus-icon
Product Code/Name Download Dimension Article Info
Helikon™ Pro - Helicoidal Bar AISI 304 Enlarge search-icon
BFO02-30408

Helikon™ Pro - Helicoidal Bar AISI 304

ø 8 - 1.000 mm
Helikon™ Pro - Helicoidal Bar AISI 304 Enlarge search-icon
BFO02-30410

Helikon™ Pro - Helicoidal Bar AISI 304

ø 10 - 1.000 mm
Helikon™ Pro - Helicoidal Bar AISI 316 Enlarge search-icon
BFO02-31608

Helikon™ Pro - Helicoidal Bar AISI 316

ø 8 - 1.000 mm
Helikon™ Pro - Helicoidal Bar AISI 316 Enlarge search-icon
BFO02-31610

Helikon™ Pro - Helicoidal Bar AISI 316

ø 10 - 1.000 mm
