Fiberglass mesh roll for reinforcement hercunet
Fiberglass Mesh Roll For Reinforcement HERCUNET?noresize
Fiberglass Mesh Roll For Reinforcement HERCUNET

1 /

Product Description

 close-icon minus-icon

Alkali resistant Fiberglass Mesh and accessories made of GFRP (Glass Fiber reinforced Polymer) for structural consolidation of brick, stone, tuff, limestone, floors and vaults.

The mesh has a rectangular mesh, available in 3 different sizes: 40 x 40 mm (RET03-40440), 40 x 80 mm (RET03-40480) and 80 x 80 mm (RET03-40880).

It is produced with Pullweaving technology, having 25 warp bars per meter, medium traction elastic modulus 23 GPa, tensile strength of the single bar 4.5 kN, elongation at break 1.5%.

Materials used

 close-icon minus-icon

Composite mesh made of GFRP (Glass Fiber Reinforced Polymer) resistant to alkalis,with a weight of 980 gr./m2 (RET03-40440), 700 gr./m2 (RET03-40480), 490 gr./m2 (RET03-40880).

Installation

 close-icon minus-icon

In structural cycles for renovation and consolidation of structural elements.

Particular use for the extradossal / intradossal reinforcement of vaults and masonry and / or stone arches, for masonry elements of brick, stone, mixed stone masonry and tuff.

Articles

minus-icon
Product Code/Name Download Dimension Article Info
Hercunet - Structural Mesh 4040 Enlarge search-icon
RET03-40440

Hercunet - Structural Mesh 4040

close-icon
TD 		2,0 x 20,0 m
Hercunet - Structural Mesh 4080 Enlarge search-icon
RET03-40480

Hercunet - Structural Mesh 4080

close-icon
TD 		2,0 x 20,0 m
Hercunet - Structural Mesh 8080 Enlarge search-icon
RET03-40880

Hercunet - Structural Mesh 8080

close-icon
TD 		2,0 x 20,0 m

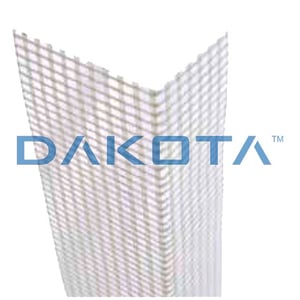

Hercunet Corner - Structural Mesh 4040 Enlarge search-icon
RET03-40440/A

Hercunet Corner - Structural Mesh 4040

0,4 x 0,4 x 2,0 m
Enlarge search-icon
RET03-40440/PA

close-icon
TD 		100 x 150 mm
Enlarge search-icon
RET03-40400

Download Legends

TD

TD

Technical Datasheet
