Fiber glass mesh for etics
Fiber glass mesh soft net etag 004 itc cnr 150 gr r117 soft
Fiberglass Thermal Insulation Mesh
Fiberglass Thermal Insulation Mesh

1 /

Product Description

 close-icon minus-icon

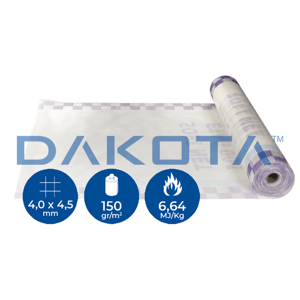

White color fiberglass mesh (identification code. R117, corresponding to net weight per square meter of fiberglass mesh without resin).with overlap and cut lines to facilitate the correct installation. Height 1,00 x 50 meters. Packed in cellophane rolls.

Materials used

 close-icon minus-icon

Made of fiberglass Adfors Saint-Gobain type E, impregnated with resins antialcaline SBR, complies with ETAG 004 certified by leading European Institutes, accompanied by Quality Mark ITC CNR, axle spacing 4.0 x 4.5 mm and weight equal to 150 gr/m2.

Use

 close-icon minus-icon

Used in thermal insulating systems, ETICS as armor for the smoothing layer in order to absorb and evenly distribute the mechanical stresses to which the system could be subjected (ground settling, shrinkage, temperature changes, external agents) avoiding the formation of cracks in the facade.

Articles

minus-icon
Product Code/Name Download Dimension Article Info
Soft-net fiber glass mesh Enlarge search-icon
RET01-1160S

Soft-net fiber glass mesh

close-icon
TD 		1,00 x 50 m

Download Legends

TD

TD

Technical Datasheet

Do you need product support?

Request a sample or contact us for any need.
